Three variants are available
for individual configuration

Cleaning performance
up to 14,000 m²/h

Large 400-litre solution and recovery tank

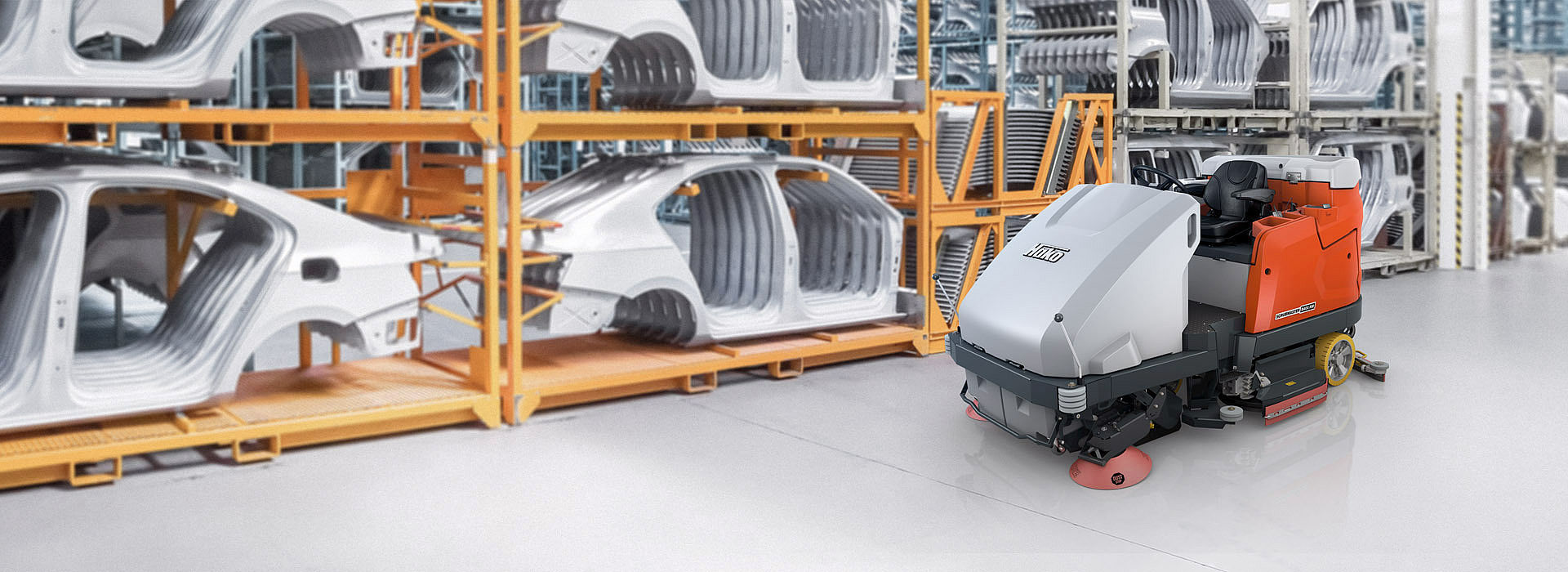

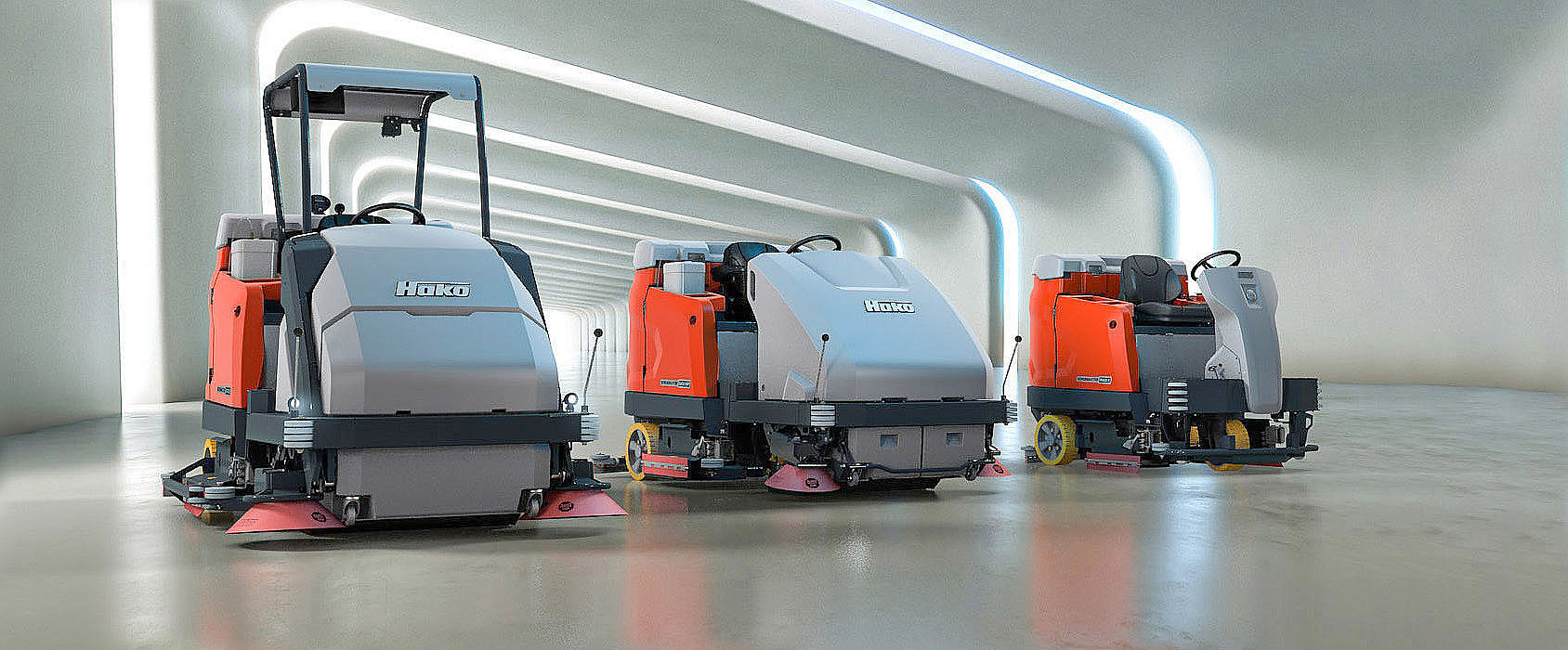

Scrubmaster B400 R Series

Ride-on scrubber-driers and vacuum sweeper & scrubber-drier
combi machines for extra-large areas

Three variants are available
for individual configuration

Cleaning performance
up to 14,000 m²/h

Large 400-litre solution and recovery tank

Reinigungsmaschinen zum Kehrsaugen und Scheuersaugen
Reinigungsmaschinen zum Kehrsaugen und Scheuersaugen

Industrial and commercial areas are constantly increasing in size, and applications are becoming ever more specific. Hako’s new Scrubmaster B400 R Series meets the requirements associated with large-scale tasks. Both the new scrubber-driers and vacuum sweeper & scrubber-drier combi machines ensure long, uninterrupted working, with high area performances of up to 14,000 m2/h thanks to large 400-litre solution and recovery tanks, and a maximised battery capacity provided by the optional battery changing system.  The new product series offers a particularly wide range of application options through three different machine variants, 3-disc-brush units available in working widths of 123 cm and 155 cm, sophisticated extras as a standard, as well as numerous individually selectable options and tools for more efficiency, flexibility and occupational safety.

  • 3-disc-brush units with working widths of 123 cm or 155 cm
  • X-AC front and rear drive (optional) for improved traction and a powerful performance on both level surfaces and inclines of up to 15% in cleaning mode
  • Low-dust sweeping and reduced fine particulate emissions with DustStop (variants Scrubmaster B400 RH and B400 RM)
  • Maximised battery capacity provided by the optional battery changing system
  • AGR-certified, ergonomic workplace with height-adjustable steering wheel ensures back-friendly working
  • Individually configurable with numerous optional extras and tools

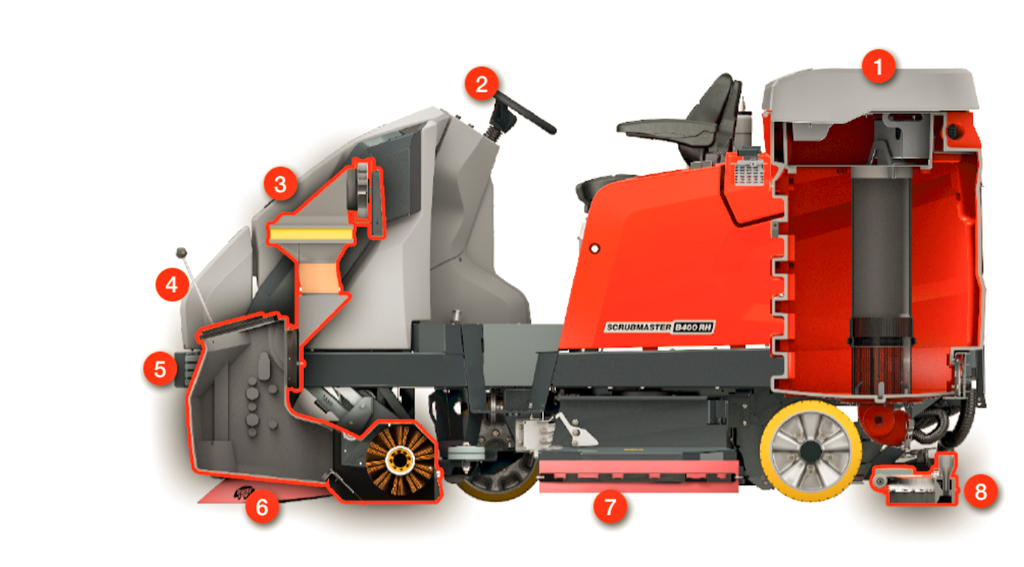

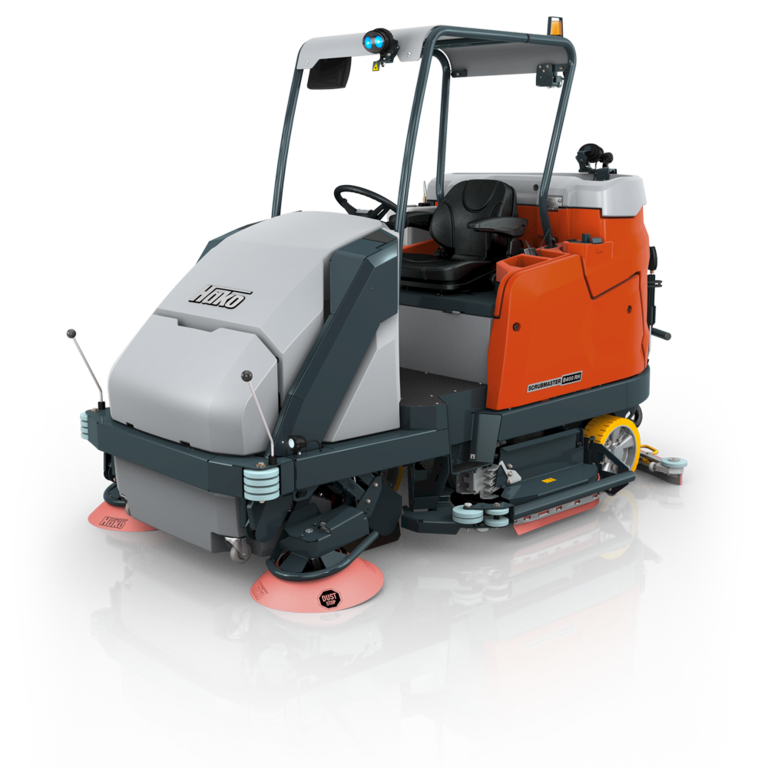

Technical perfection



1  400-litre solution and recovery tank
2  Ergonomic workplace and intuitive operation
3  150-litre dirt hopper
4  Pre-sweep unit
5  Collision-proof frame
6  Side broom with DustStop (option)
7  3-disc-brush unit, 123 or 155 cm working width
8  Fold-up squeegee facilitates daily maintenance

Video Poster

By loading the video, you accept YouTube's privacy policy.
Learn more

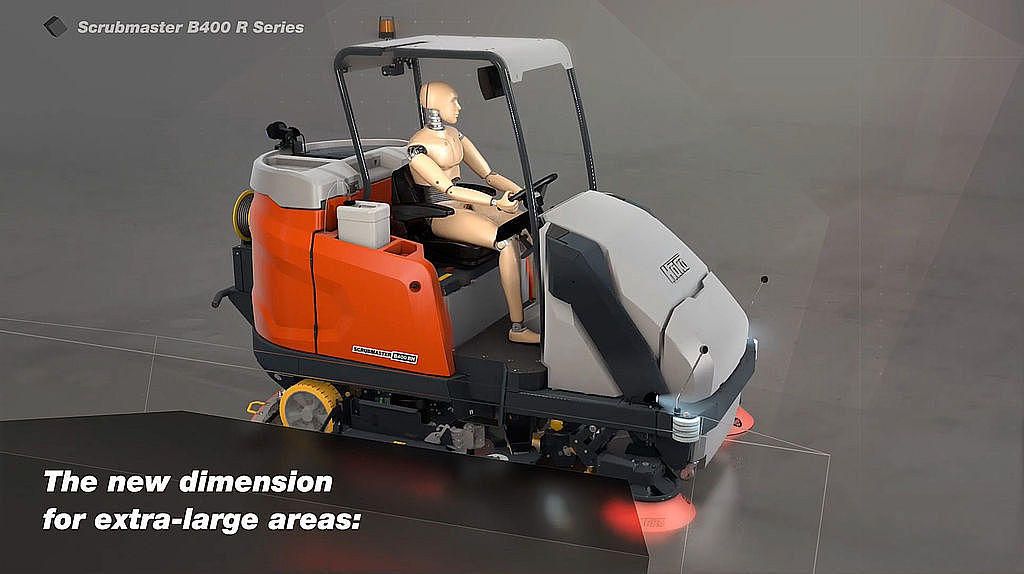

The new dimension for very large areas



More output

With area performances of up to 14,000 m2/h and a modulating X-AC front and rear drive (option) for improved traction on both level surfaces and inclines of up to 15 % in cleaning mode.

More possibilities

With numerous individual extras and optional tools such as an on-board wastewater treatment system, high-pressure cleaners, safety equipment, and much more.

More comfort

With a back-friendly overall machine concept, power-assisted steering, and easy-to-reach components for uncomplicated daily maintenance and machine-cleaning tasks.

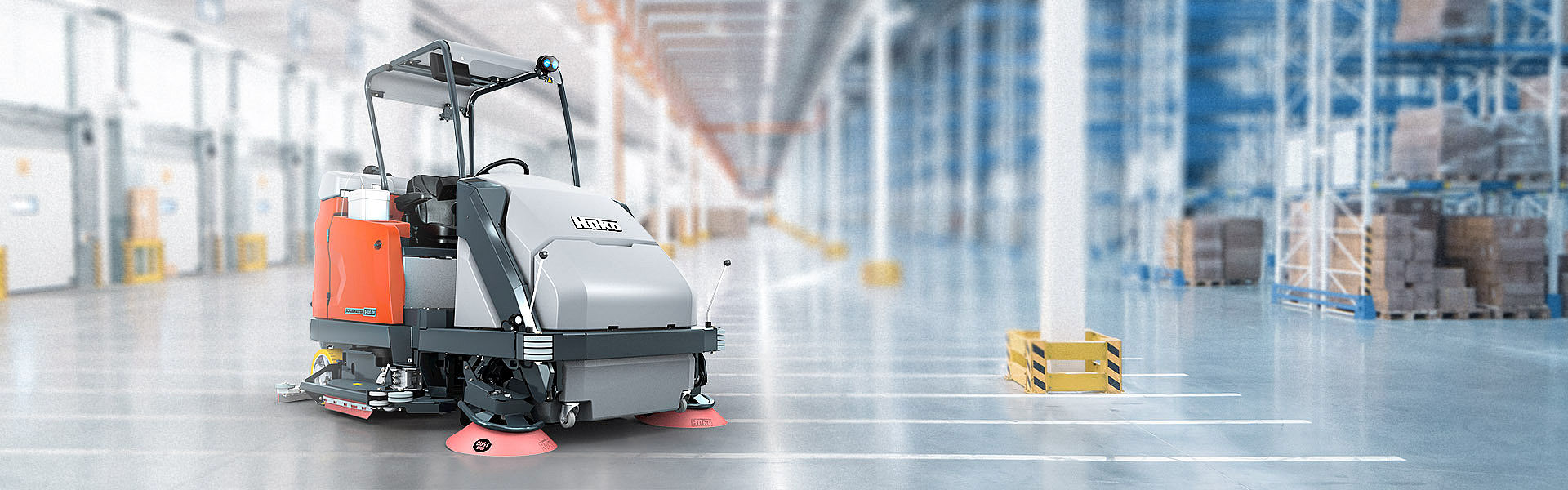

Reinigungsgerät beim Kehrsaugen bzw. Scheuersaugen in einer Lagerhalle.

Special features

Designed with much attention to detail

Steuerung und Kontrolle einer kombinierten Reinigungsmaschine.

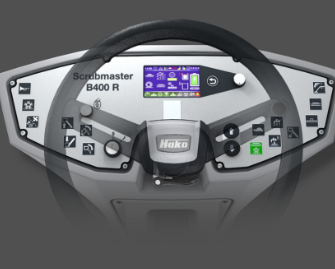

Everything at a glance: The clearly-arranged, easy-to-read operating panel with LCD display and reset button is self-explanatory and allows intuitive use. In addition, the one-button operating system starts all major cleaning functions at the push of a button.

More hygiene: Hako-AntiBac®, which equips the tanks with antibacterial properties, reduces fungal and bacterial growth, odour development, and the consumption of tank cleaning disinfectants.

Protects resources: Hako-AquaControl saves up to 50% water during the cleaning process, thanks to intelligent brush systems and automated water-stop when the machine stands still.

Superior comfort: The Scrubmaster B400 R Series has been awarded the AGR (Aktion Gesunder Rücken e.V.) quality label for its overall ergonomic machine concept.

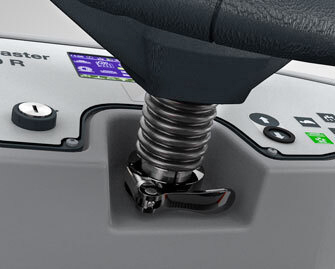

Height-adjustable steering wheel: The steering wheel can be adjusted to the driver’s height to ensure comfortable working and a back-friendly seating position.

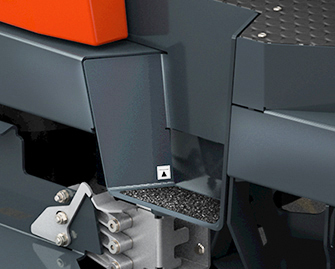

Comfortable boarding: The large, slip-proof tread steps enable easy boarding of the mobile workplace from both sides.

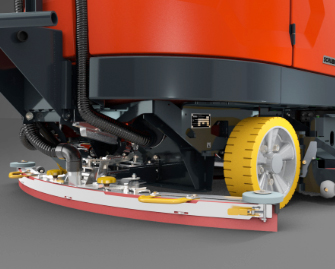

Self-cleaning squeegee: The squeegee can be rinsed automatically to make daily machine cleaning easier for the operator while increasing hygiene at the same time. In addition, the squeegee folds up manually to facilitate thorough cleaning and maintenance.

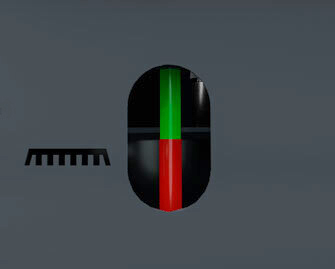

Brush wear indicator: In order to ensure consistently good cleaning results, a mechanical, easy-to-read brush wear indicator is installed on the outside of the machine.

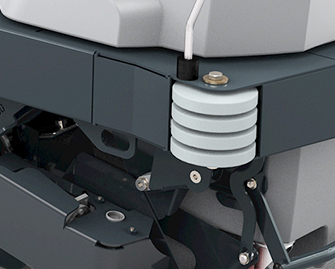

Made for extreme working environments: With its heavy-duty steel-frame design, high-quality materials and clever details such as side bumpers providing protection against collisions, the Scrubmaster B400 R Series guarantees a long service life even in demanding environments.

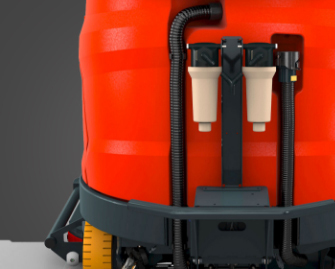

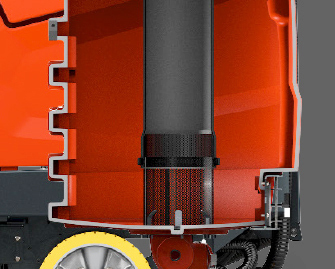

Easy and safe: The 400-litre solution and recovery tank is equipped with a two-stage filter system for coarse and fine dirt to ensure that the recovered water is already filtered before it flows back into the tank. The filters are uncomplicated to access and easy to clean.

Upgrade options

Configurable in every detail

Wechsel der Batterie einer Putzmaschine zum Kehrsaugen und Scheuersaugen.

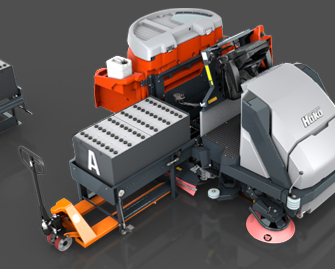

Battery changing system: The optional battery changing system maximises the battery capacity to enable long operating times. Changing the drive batteries is uncomplicated and simple, no tools required. Click here to watch the video!

Scheinwerfer und Rückfahrkamera einer Aufsitz-Kehrsaug- und Scheuersaugmaschine.

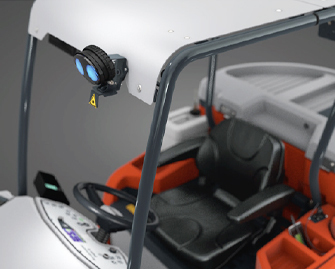

Safety equipment: When working in complex environments with many transverse aisles, the BlueSpot light indicates an approaching vehicle before it becomes visible to people or other vehicles crossing. The rear-view camera provides additional safety.

StVO lighting system: To ensure better visibility, e.g. when working outdoors, the Scrubmasters can be equipped with StVO-approved lighting systems.

Fahrerdach zum Schutz bei Einsatz der Bodenreinigungsmaschine im Warenlager.

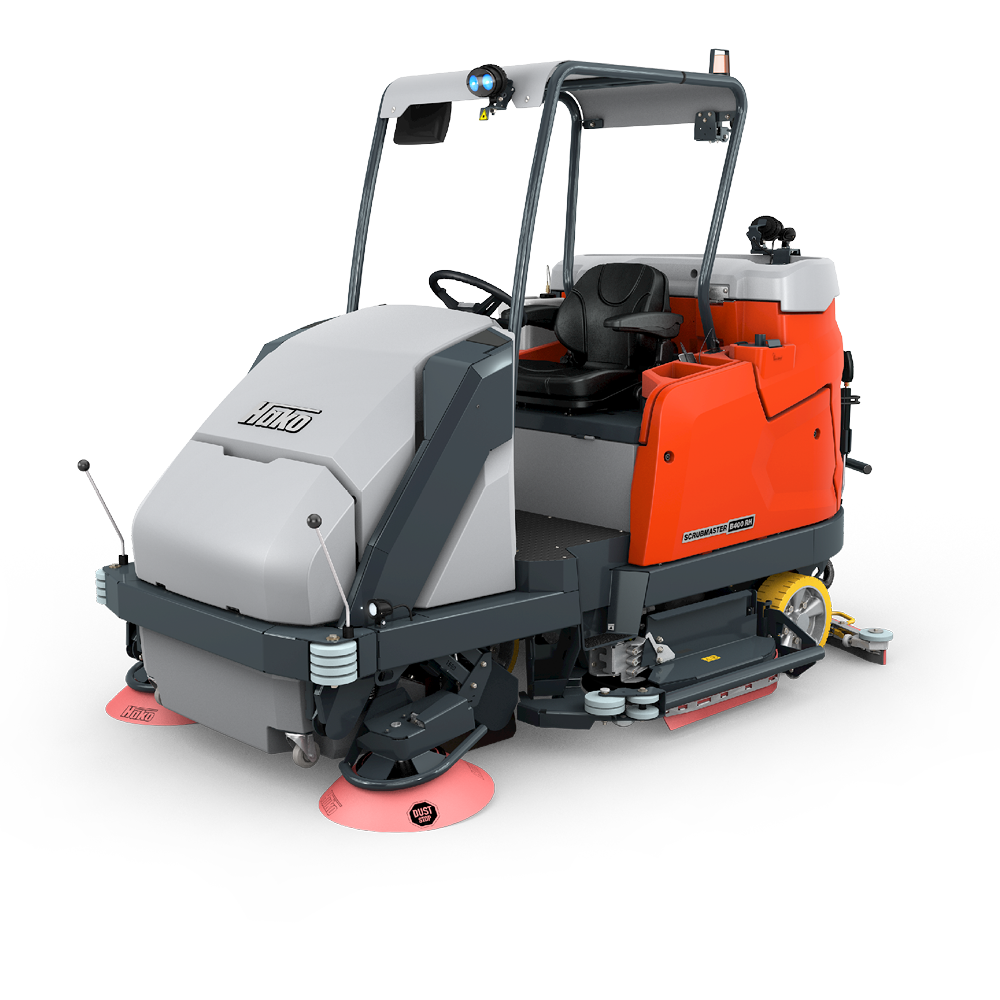

Overhead guard: The machines can be equipped with an overhead guard to protect the driver against objects falling from above, for instance in large warehouses.

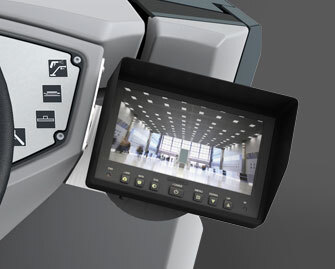

Reversing system: The rear-view camera installed at the rear end of the machine and the monitor next to the operating panel provide increased rearward vision when reversing.

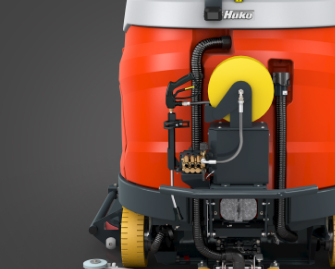

High-pressure cleaner: The on-board high-pressure cleaner with built-in power supply provides a pressure of 120 bar at 6 l/min to clean corners, pillars and walls.

On-board wastewater treatment system: The wastewater treatment system integrated in the machine provides extended operating times with one and the same tank filling. The fact that the water in the tank needs to be changed less often also has a positive impact on the environment.

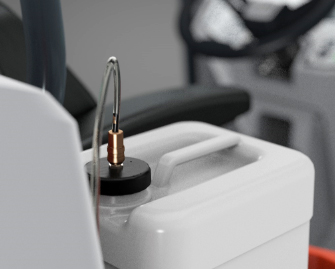

On-board dosing: Fully integrated in the machine design, the on-board dosing system automatically adds just the right quantity of cleaning detergents, depending on the amount of water supplied to the system during the cleaning process. For more safety in the handling of chemicals.

Reinigungsgerät beim Reinigen eines Bereichs mit Steigung.

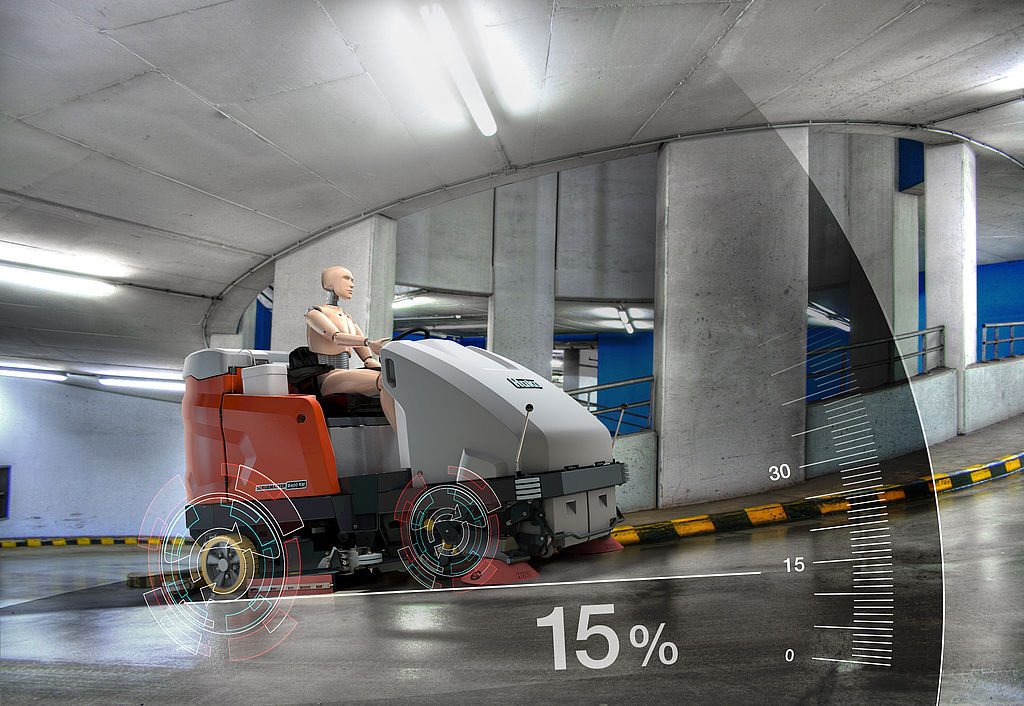

Performance X-AC: Powerful performance also on inclines


The Scrubmasters of Hako’s B400 R Series can be equipped with an electronically modulating X-AC front and rear drive, which provides improved traction in cleaning mode. Our X-AC variants can effortlessly clean ramps and inclines of up to 15% without any loss of performance. This makes it easy to plan and carry out cleaning jobs in application areas with level surfaces as well as ascending and descending surfaces, such as multi-storey parking garages. Additional manual cleaning of ramps is not necessary – this saves both time and costs.

Variants

Three variants – countless possibilities

The Scrubmaster B400 R Series comprises three variants: the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RH with high dump, the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RM for manual emptying, and the scrubber-drier Scrubmaster B400 R.

Kehrsaug- und Scheuersaugmaschine beim Entleeren in einen Container.

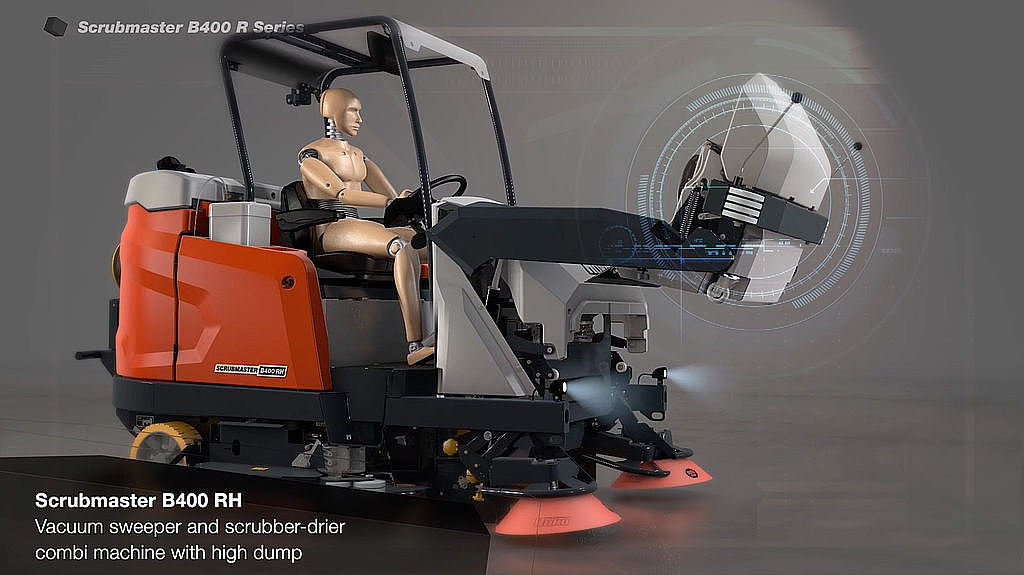

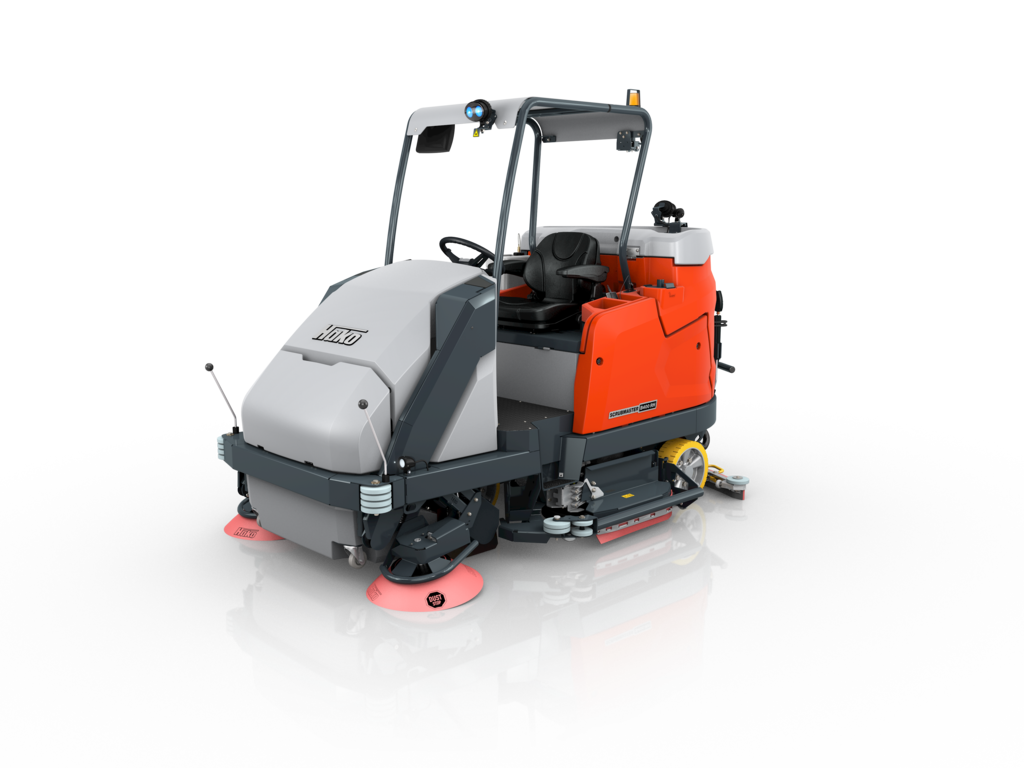

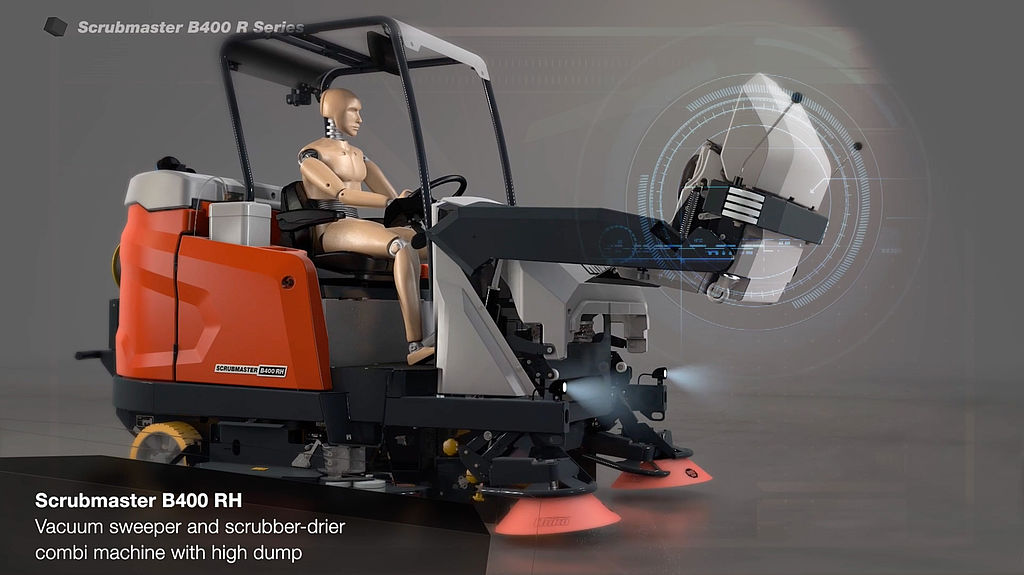

Scrubmaster B400 RH

Vacuum sweeper and scrubber-drier
combi machine with high dump

The Scrubmaster B400 RH with high dump is the perfect choice for environments where plenty of coarse dirt regularly accumulates, e.g. in production or exhibition halls. Equipped with a 150-litre dirt hopper, the vacuum sweeper and scrubber-drier combi machine can cope with large amounts of coarse dirt. Larger pieces of debris can be picked up by hand and thrown into the dirt hopper manually through the integrated coarse dirt flap.

    • Automated high dump
    • Coarse dirt flap to throw in litter by hand
    • 150-litre dirt hopper
    • Dust Stop for low-dust sweeping
    Video Poster

    By loading the video, you accept YouTube's privacy policy.
    Learn more

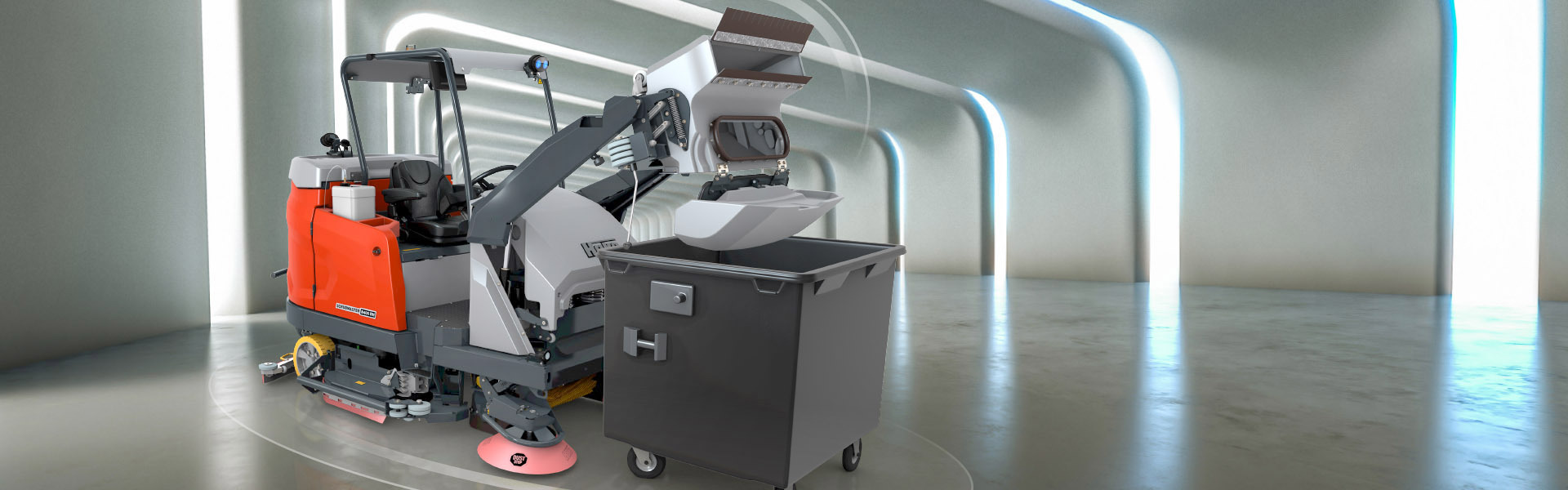

    Automated, practical, efficient!


    Dumping the dirt hopper contents directly into waste containers at a height of up to 165 cm (high dump) has two major benefits: It saves time thanks to the automated disposal of large amounts of dirt; and it prevents the operator from coming into contact with the contents.

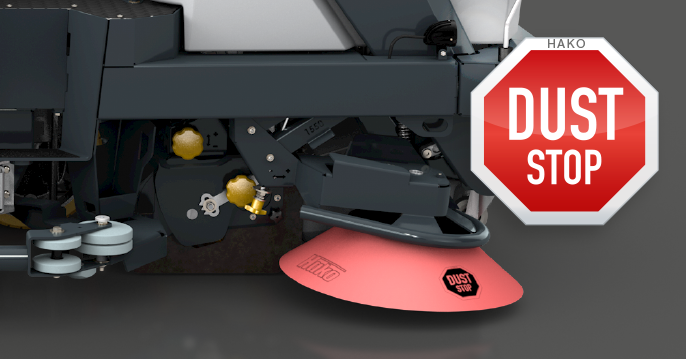

    Less dirt, less dust

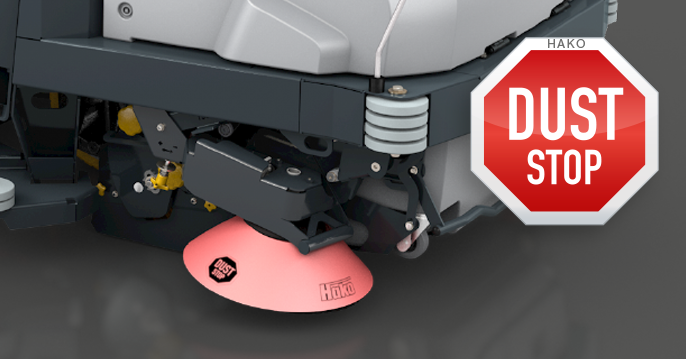

    Yet another benefit: Hako’s innovative side broom jacket Dust Stop (option) reduces the development of dust and fine particulates during dry sweeping by up to 90% when compared to working with conventional side brooms, which protects both the immediate environment and, for instance, goods stored on shelves against rising dust. In addition, the negative impact of fine particulates on the operator’s health is reduced significantly.

    Besenmantel zum Schutz der Reinigungsmaschine vor Staub.
    Kehrsaug- und Scheuersaugmaschine beim Einsatz in einer Fabrik- und Fertigungshalle.

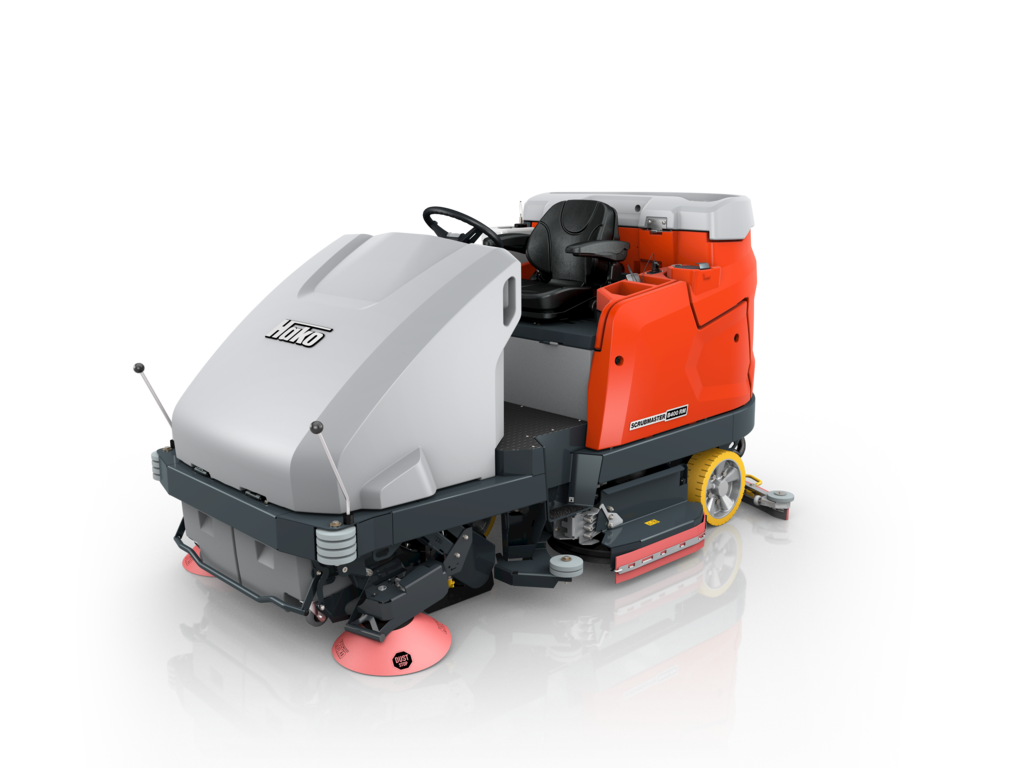

    Scrubmaster B400 RM

    Vacuum sweeper and scrubber-drier
    combi machine for manual emptying

    In environments with normal to high levels of coarse dirt, the Scrubmaster B400 RM plays its trump cards to the full. Coarse dirt is collected during dry sweeping to clear the path for the brushes and enable thorough wet cleaning. After the cleaning job is done, the dirt hopper can be quickly and easily emptied by hand.



      • Two 44-litre dirt hoppers
      • Take-it-Easy hopper-emptying system
      • Dust Stop for low-dust sweeping

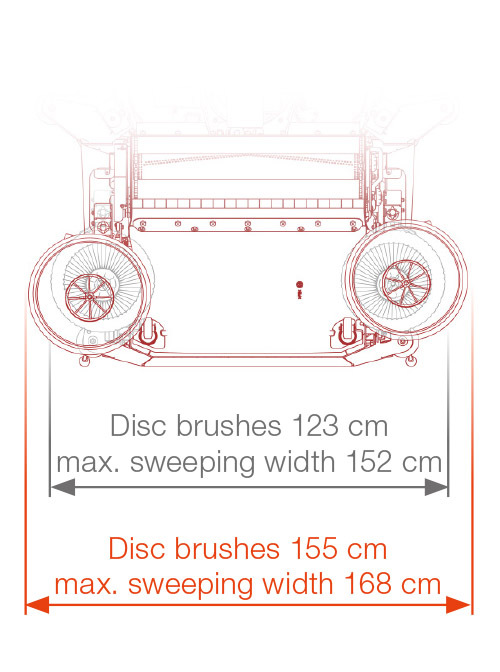

      • Sweeping path of up to 168 cm (the squeegee is covered)
      Behälter einer Kombinations-Kehrsaug- und Scheuersaugmaschine.

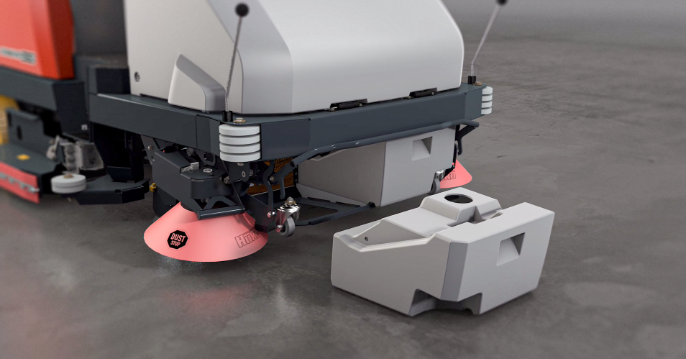

      Comfortable and uncomplicated: Hako's Take-it-Easy dirt hopper system


      After the cleaning job is done, the Take-it-Easy dirt hopper system of the Scrubmaster B400 RM allows uncomplicated removal and emptying of the two 44-litre dirt hoppers without the operator coming in contact with their contents.

      Reinigungsgerät mit Besenabdeckung zum Schutz vor Staub.

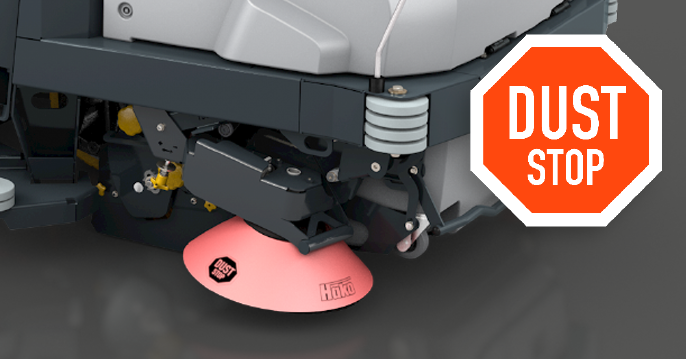

      Less dirt, less dust


      Yet another benefit: Hako’s innovative side broom jacket Dust Stop (option) reduces the development of dust and fine particulates during dry sweeping by up to 90% when compared to working with conventional side brooms, which protects both the immediate environment and, for instance, goods stored on shelves against rising dust. In addition, the negative impact of fine particulates on the operator’s health is reduced significantly.

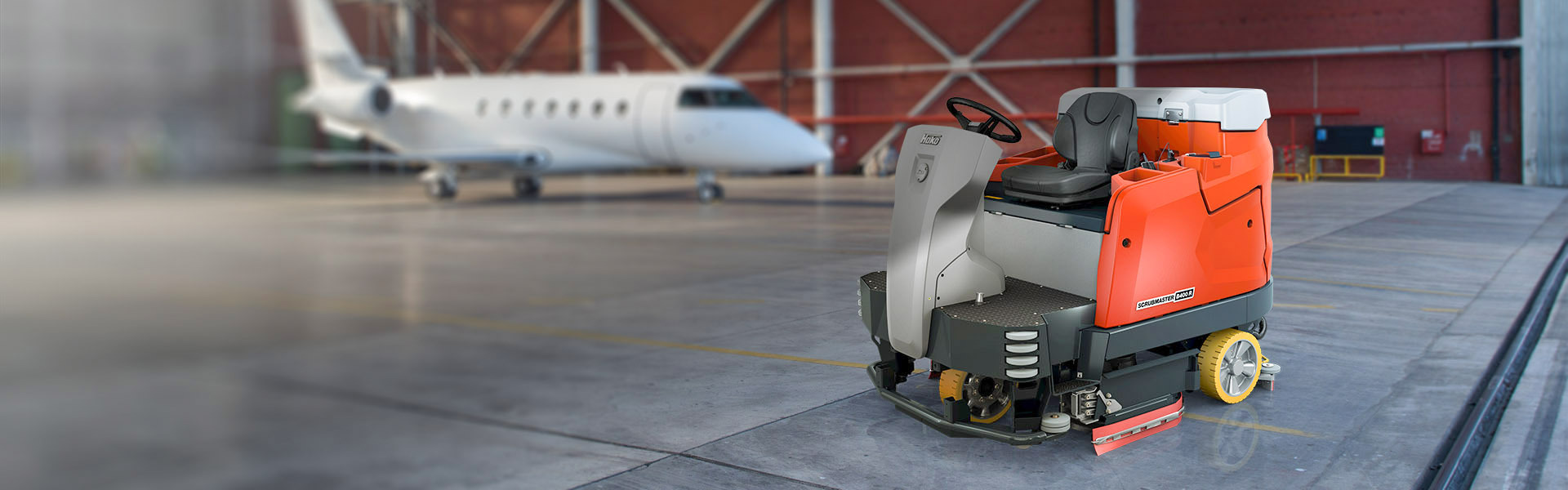

      Kehrsaug- und Scheuersaugmaschine beim Einsatz in einem Hangar.

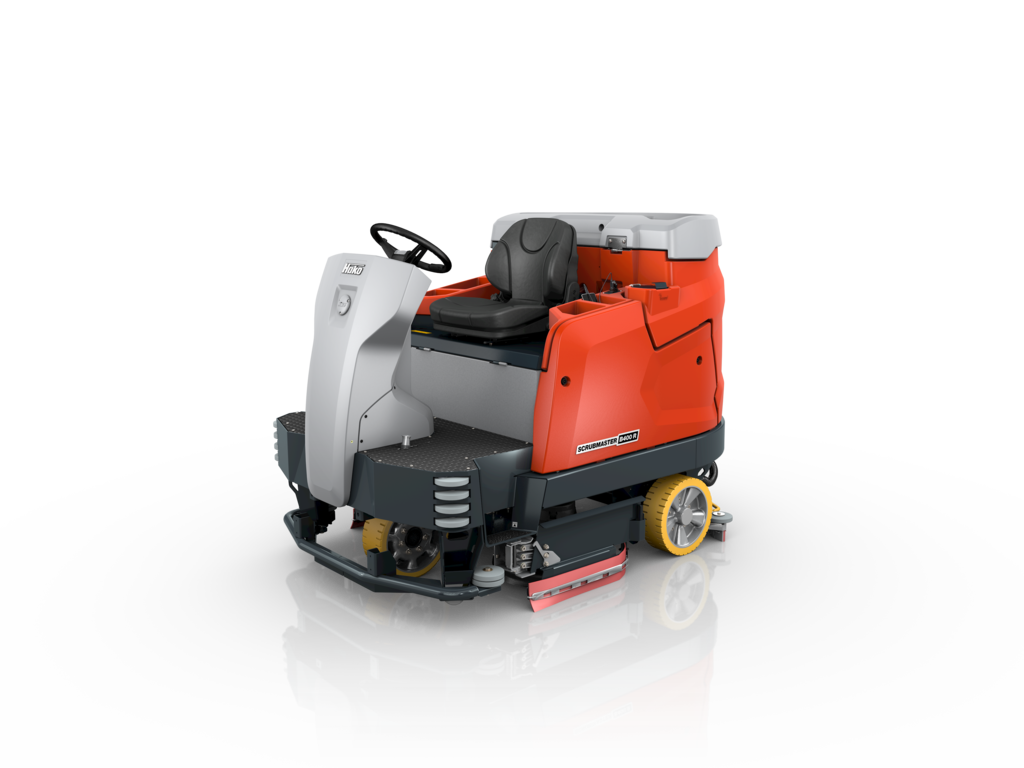

      Scrubmaster B400 R

      Scrubber-drier

      With its high area performance and small turning circle, the compact scrubber-drier Scrubmaster B400 R reliably provides clean floors.

        • Complete U-turns in aisles as small as 230 cm
        • Quick-connect system allows uncomplicated upgrading with pre-sweep tools or special equipment

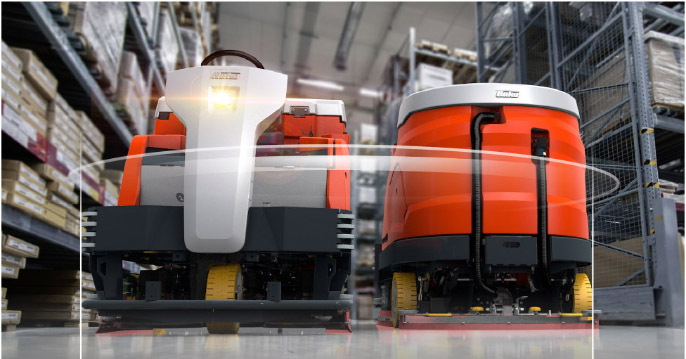

        Up the aisle, back down the aisle – done!


        The Scrubmaster B400 R is extremely compact and enables complete U-turns in aisles as small as 230 cm. And our 155-cm-working-width variant is a real timesaver when it
        comes to cleaning aisles of up to 3 metres: One pass up and back down the aisle is sufficient to provide excellent cleaning results.

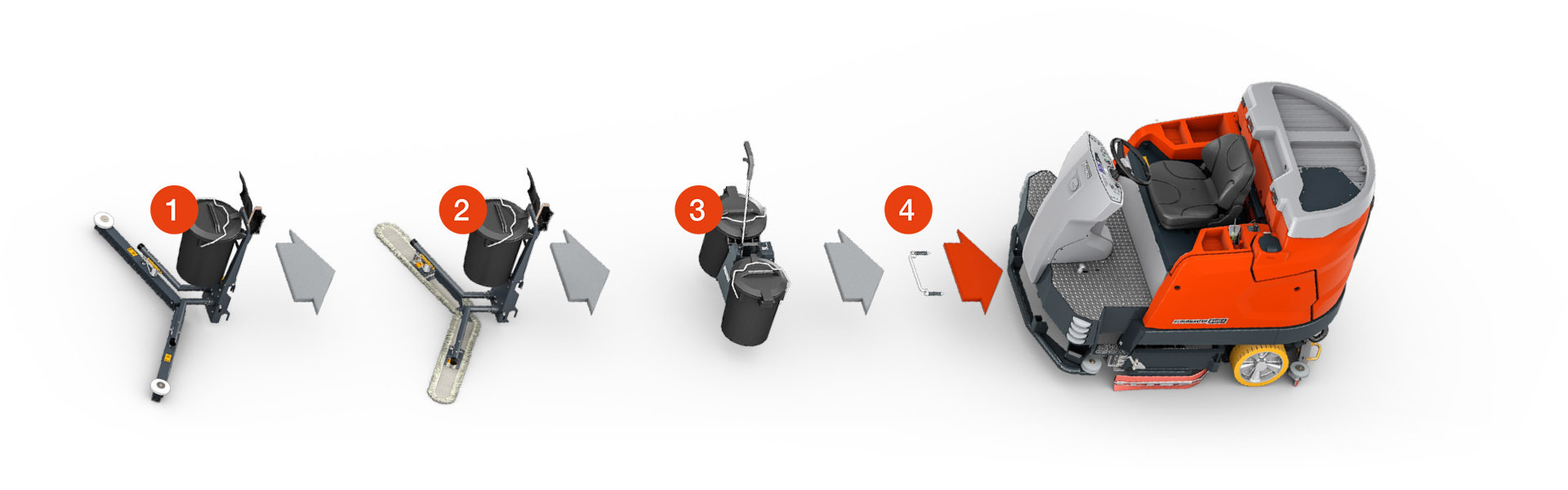

        Extended application options with Hako's quick-connect system


        Where coarse dirt or light debris accumulates in addition to dust and dirt, or for areas that require pre-cleaning, the quick-connect system (option) provides uncomplicated upgrading of the Scrubmaster B400 R with additional tools.

        1  Tool Pre-sweep unit “Broom”
        2  Tool Pre-sweep unit “Mop”
        3  Tool Light-debris collector
        4  Tool quick-connect system

        Technical data

        The Scrubmaster B400 R Series at a glance

        Scrubmaster B400 R B400 R/RM/RH 1230 B400 R/RM/RH 1550
        Working width scrubbing cm 123 155
        Squeegee width cm 136 166
        Theoretical area performance m²/h 11000 14000
        Max. climbing capacity/
        in cleaning mode without/with X-AC
        % 6 / 15
        6 / 15
        Working speed km/h 9 9
        Brush system/number of brushes disc/3 disc/3
        Brush contact pressure kg 55-75-95 80-110-140
        Solution and recovery tank capacity l 400 400
        Dirt hopper capacity (gross)*
        Take-it-Easy high dump**
        l 2 x 44
        150
        2 x 44
        150
        Nominal voltage Volt 36 36
        Total output kW 14.7 16
        Battery capacity max. Ah 540/810 540/810
        Length with squeegee R/RM/RH cm 202 / 281 / 281 202 / 281 / 281
        Width without/with squeegee cm 130 / 136 160 / 166
        Height without/with overhead guard cm 150 / 212 150 / 212
        Weight, ready to use, without driver kg 2110 / 2260 / 2420 2130 / 2280 / 2440
        Noise level at the driver’s ear R/RM/RH dB(A) 68 / 74 / 74 68 / 74 / 74
        Show PDF

        * Scrubmaster B400 RM
        ** Scrubmaster B400 RH
