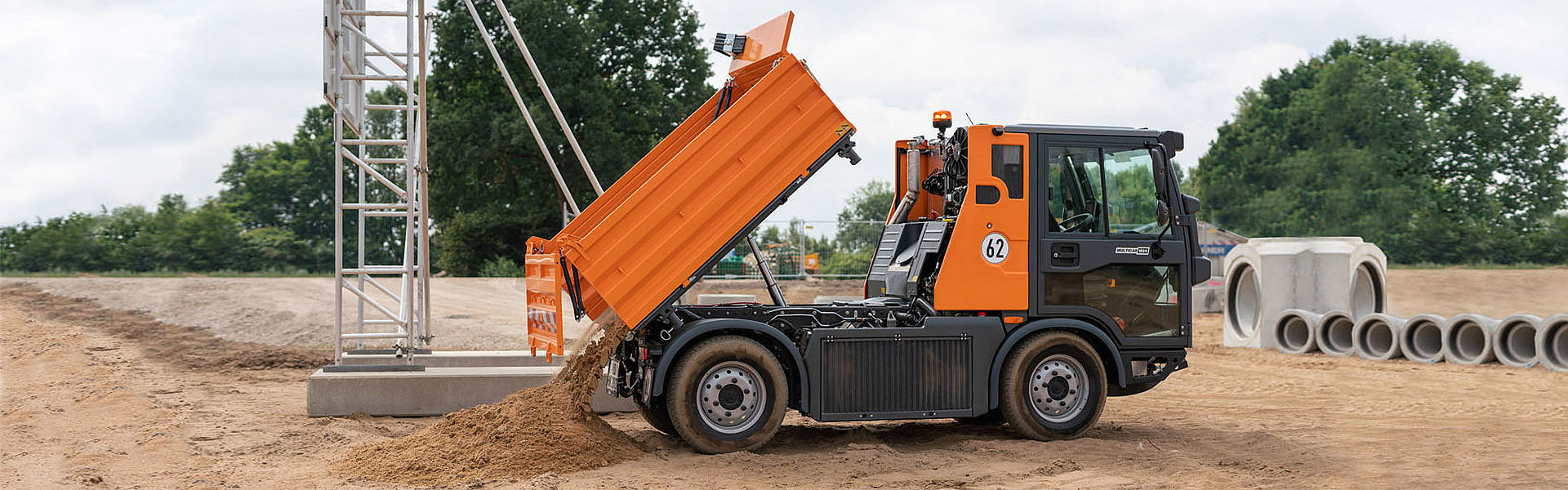

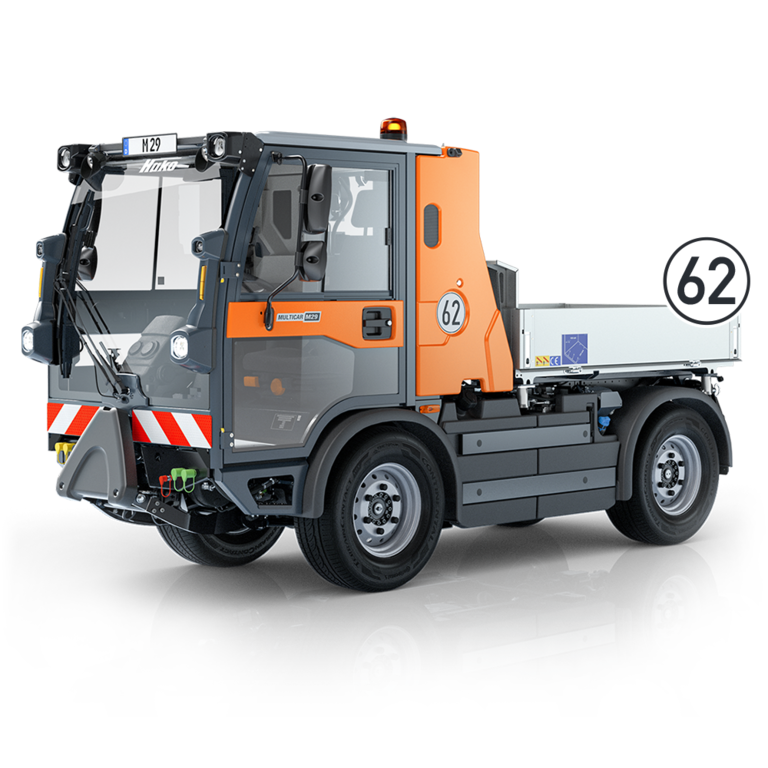

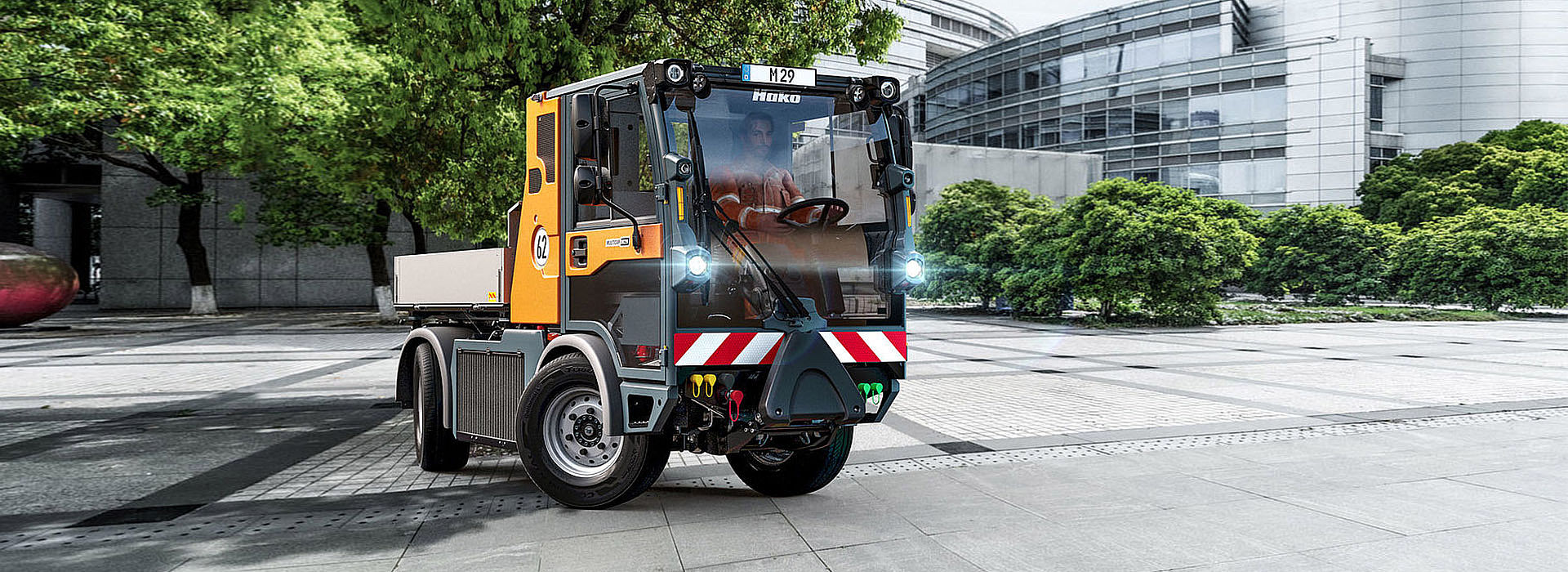

Multicar M29

Narrow-gauge load and implement carrier in the 6-t class

Modular principle for maximum
flexibility

Compact vehicle with
a small turning circle

Hydrostatic drive

The Multicar M29 is your compact, manoeuvrable and flexible solution for all-season applications: sweeping in the spring, mowing in the summer, collecting leaves in autumn, and clearing snow in the winter. Thanks to its modular concept, this narrow-gauge load & implement carrier is perfectly suited for a wide range of applications: from municipal tasks to gardening & landscaping or waste management. Payloads of up to 3.2 t ensure that you can make perfect use of the machine’s resources throughout the year. For increased efficiency and particularly economical operation.

  • Quickly off to the next job site with a top speed of 62 km/h
  • Working in confined areas: The vehicle has a width of only 132 cm and a small turning circle
  • Optimal working conditions for the driver
  • Modular concept for maximum flexibility and multifunctionality
  • Easy-to-use quick-change system with interfaces for approximately 100 different attachment devices

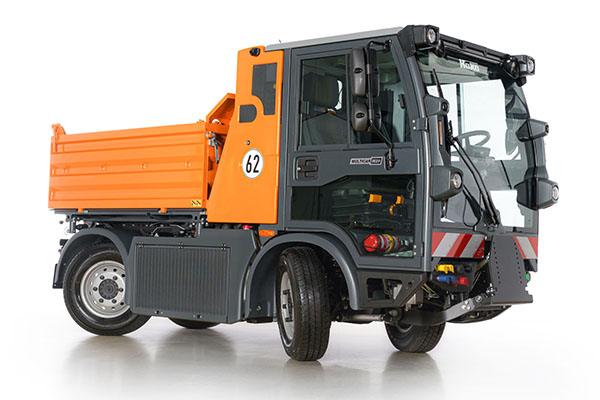

U-turns in the smallest of spaces

Thanks to its compact dimensions with a vehicle width of only 132 cm as well as its small turning circle of only 3.25 m, the Multicar M29 is perfectly suited for working in confined areas.



Ergonomisch gestalteter Geräteträger für unterschiedliche kommunale Aufgaben.

Ergonomic design – comfortable working

This load & implement carrier offers optimal working conditions for the driver. The workplace is particularly ergonomic and all operating elements are within easy reach.

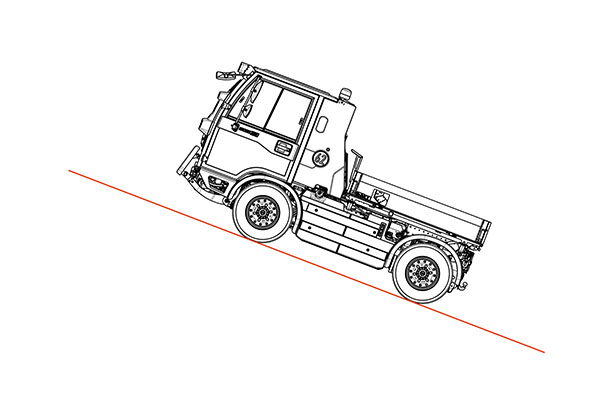

Working uphill

Inclines are no problem at all for the Multicar M29, thanks to the infinitely variable hydrostatic drive with mechanical gear reduction. Provides optimal speed adjustment, in particular when working uphill.



Special features

Designed with much attention to detail

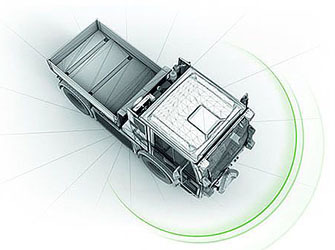

Clear view: Generous window areas, the  innovative exterior mirror concept and  the optional camera system and Turning Assistant provide improved visibility of the working environment.

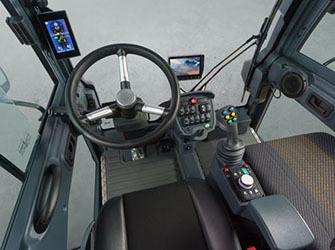

Open, large, customized: All functions are in clear view and within easy reach of the driver. The passenger area can be individually  designed – with an additional seat, storage box or as an open space.

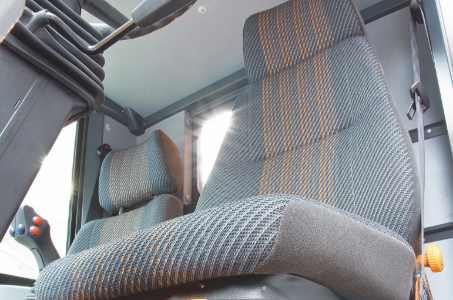

User-friendly: Working in the vehicle is both comfortable and safe.

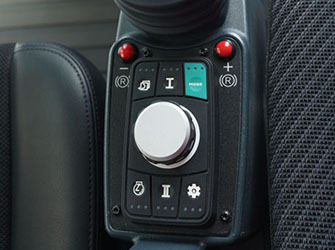

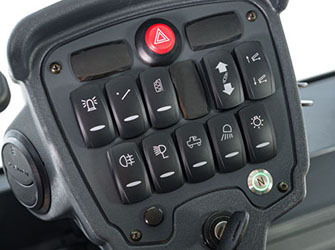

Ease of operation: Both the hydrostatic drive and  attachment functions are  operated centrally via joystick.

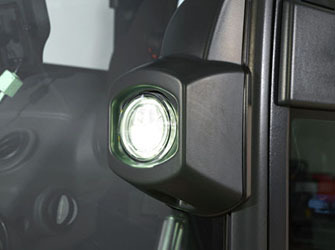

Excellent visibility conditions: The standard full-LED lighting illuminates the work area at any time of day.

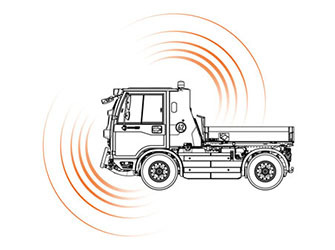

Safe for environmental zones and other sensitive areas: thanks to low emission values and a mini-mum noise level during operation.

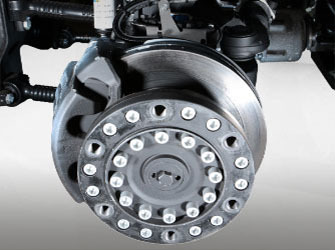

Highly resilient and safe: The vehicle’s state-of-the-art, spring-mounted commercial-vehicle axles ensure high payloads and safe driving characteristics.

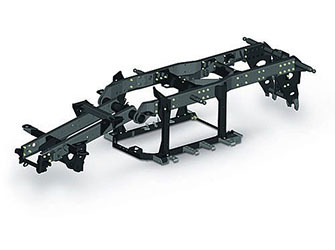

Stable driveability:The frame construction of the Multicar M29: Made of high-quality material, robust and stable – the basis of a safe vehicle.

Highest safety level – in line with the high standards applied in lorry construction. With all-wheel drive, disc brakes, integrated hydrostatic ABS, daytime running lights (standard equipment), large reflectors, and a bright LED flashing beacon.

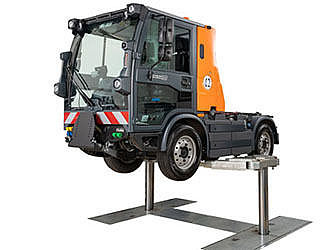

Efficient maintenance work: The 4-point support system ensures that all components are easily accessible.

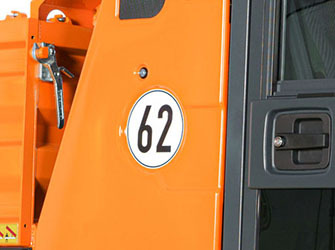

Saves time: With its top speed of 62 km/h,  the Multicar M29 can even use motorways and express roads – which reduces travel times  from one job site to the next significantly.

More back-friendly: The Multicar M29 has been awarded the AGR quality label (by the German association Aktion Gesunder Rücken e.V.) for the back-friendly overall machine concept comprising the workplace, the chassis and the quick-change system.

Multifunctionality

Consistent multifunctionality for hundreds of different applications

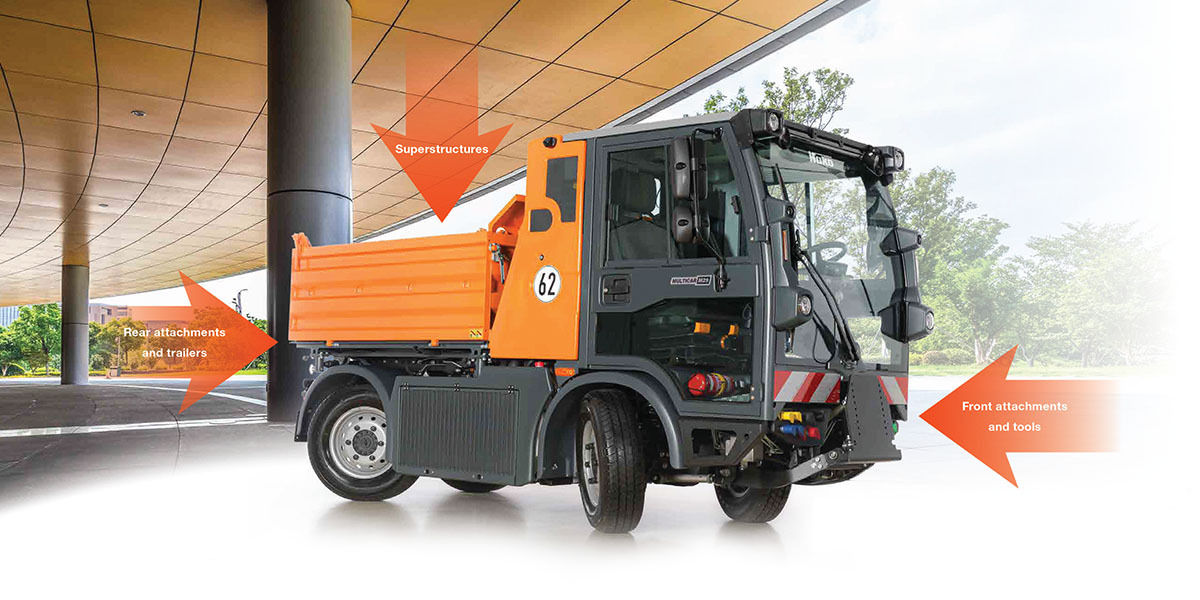

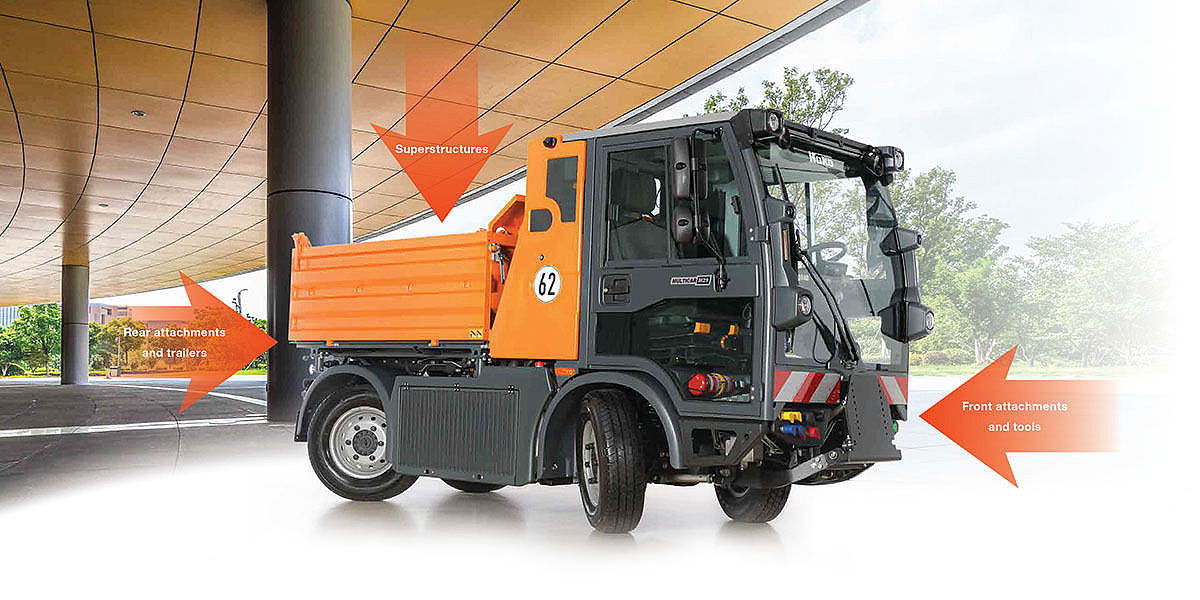

The Multicar M29 has been designed according to the modular principle right down to the last detail. This concept in combination with Hako’s quick-change system ensures that the basic vehicle of this narrow-gauge load & implement carrier can be re-tooled for a wide range of applications in no time at all. Approximately 100 different front attachments, superstructures, rear attachments and trailers are available to ensure particularly economically efficient operation in all sectors requiring multifunctional working.

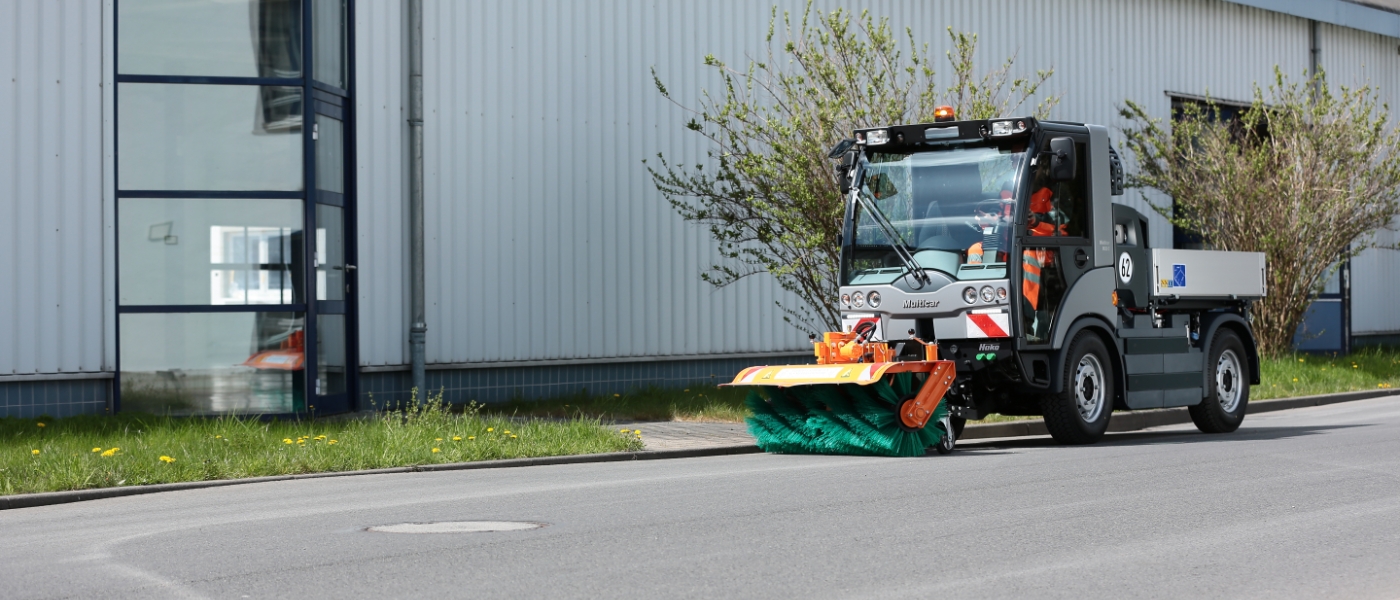

Kommunalfahrzeug nach der Erweiterung um eine Walze zum Säubern einer Straße.
Municipal cleaning throughout the seasons
“One for All”: For a wide range of applications
Comfortable quick-change system

Provides flexible all-season use

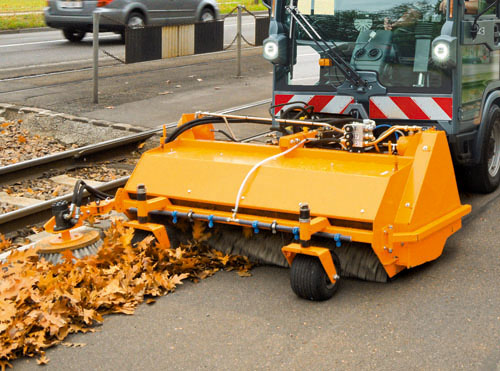

The Multicar M29 is your economically efficient solution for all tasks in the field of municipal cleaning – in all seasons. Thanks to the wide range of attachments available, the vehicle can carry out a variety of different jobs, e.g. it can be used as a sweeper, for winter service or wet cleaning tasks, to collect leaves in autumn, and much more.

One machine, a whole host of possibilities



The Multicar M29 can be used as a versatile implement carrier for a wide range of applications, e.g. for transport tasks, in agriculture, waste management, green area maintenance and municipal applications such as cleaning traffic areas or as a carrier vehicle for special hydraulic tools.

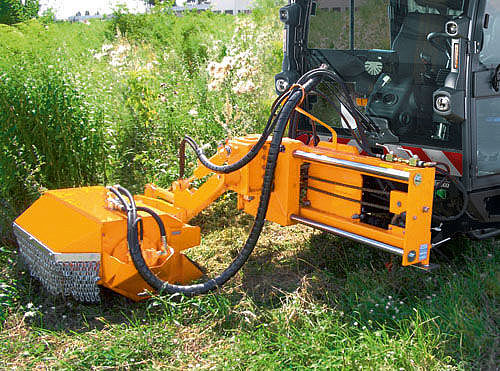

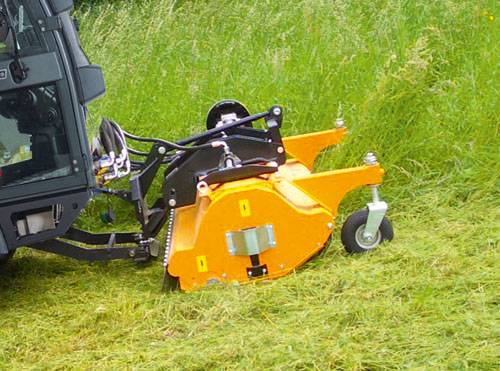

Green area maintenance
Transport

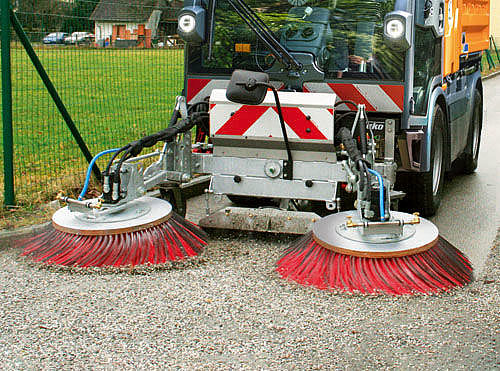

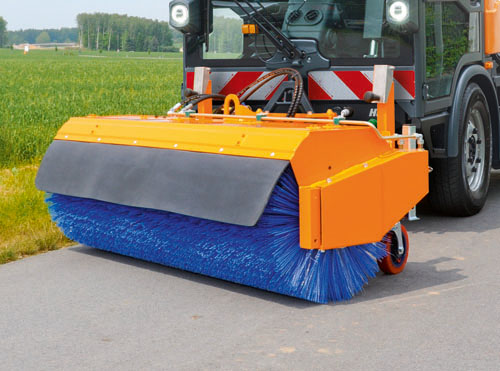

Sweeping
Road maintenance

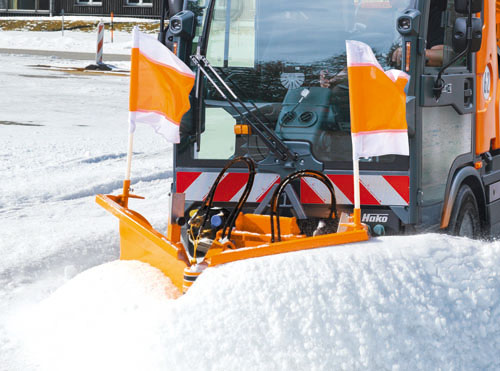

Winter service
Special applications

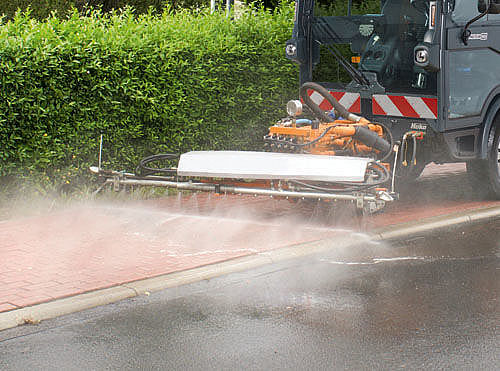

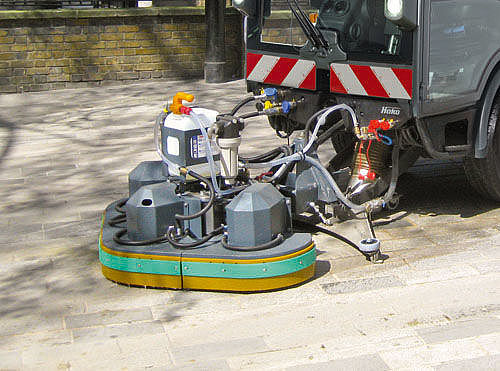

Wet cleaning
Waterjet technology
Waste management
Weed control

Quickly re-tooled for the next application

Technical Data

The Multicar M29 at a glance

Multicar M29 CMulticar M29 C HK
Engine and gearbox
EngineVW four-cylinder turbo diesel, according to Euro VI
Displacement/output2,970 cm³ / 80 kW (109 HP) @ 2,600 RPM
Max. torque420 Nm at 1,100 RPM
Working characteristics
Working hydraulicspowerful standard
hydraulics
with 1 circuit
– front or rear
– gear pump,
55 l/min, 200 bar
lifting/swivelling function
for front attachments
Load-Sensing hydraulics
with 2 circuits
– 1 circuit each front and rear
– axial piston pump (variable displacement),
0 … 110 l/min front,
0 … 70 l/min rear,
200/300 bar
– gear pump for control functions
lifting/swivelling function for front attachments
Hydraulic options a.o.2 working circuits
– 1 circuit each front and rear
– tandem gear pump,
2 x 55 l/min, 200 bar
summation circuit
(max. up to 110 l/min front
or 70 l/min rear)
path-dependent spreading via
vehicle hydraulics,
further control functions
path-dependent spreading via
vehicle hydraulics,
further control functions
Implement mount
front, optional
front lift with attachement triangle, attachment plate M29 or DIN F4 equipment plate
Implement mount rearon tipper or tipping bearings, rear attachments
Drive and control
Drivecontinuously variable hydrostatic drive, electronically controlled, with two driving speeds switchable under load
Drive optionsselectable all-wheel drive, differential lock at the rear, mechanical crawler gear
Speed in
transport mode
0–62 km/h, infinitely variable
Speed in
working mode
0–25 km/h, infinitely variable
Steeringfront wheel steering; optional all-wheel steering
Fuel tank capacity67 litres
Brakehydraulic dual-circuit braking system, disc brakes front/rear, Hydrostat-ABS acting on all four wheels;
mechanical parking brake acting on the rear axle
Load values
GVW6.0 t
Unladen weight*from 2.85 t (implement carrier, depending on the equipment)
Payload**up to 3.15 t (implement carrier, depending on the equipment)
Driving characteristics
Chassiscomfortable suspension with coil springs, hydraulic vibration dampers and additional rubber springs
Framewelded ladder frame; cranked and inclined at the front for easy access; possibility of feeding through a suction hose (central suction, e.g. mower-suction combi)
Axlesrigid axles, guided at the front on trailing arms and Panhard rod, rear guided by triangular and longitudinal links, stabiliser at the rear
Front axlesteering axle, optional steering drive axle
Rear axledrive axle, optional steering drive axle, optional with engageable differential lock
Tyres225/75 R16 C
Cabinspace-frame full-comfort cabin with high-strength profiles and plastic panelling, heated windscreen optionally available
* without optional extras or additional attachments/superstructures
** Optional equipment and attachments/superstructures reduce the payload
Shape, colour and design are subject to change in favour of further technical development.
Pictures may show optional extras.

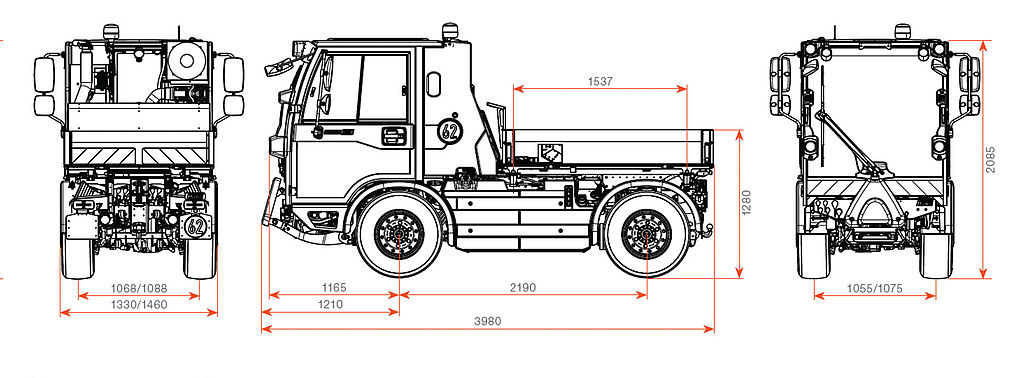

Dimensions according to EU Traffic Regulations No. 1230/2012, depending on the equipment.
