Arrange a demonstration NOW.

Three attachment points for
a wide variety of applications

High hydraulic performance

Also available with
hydostatic drive

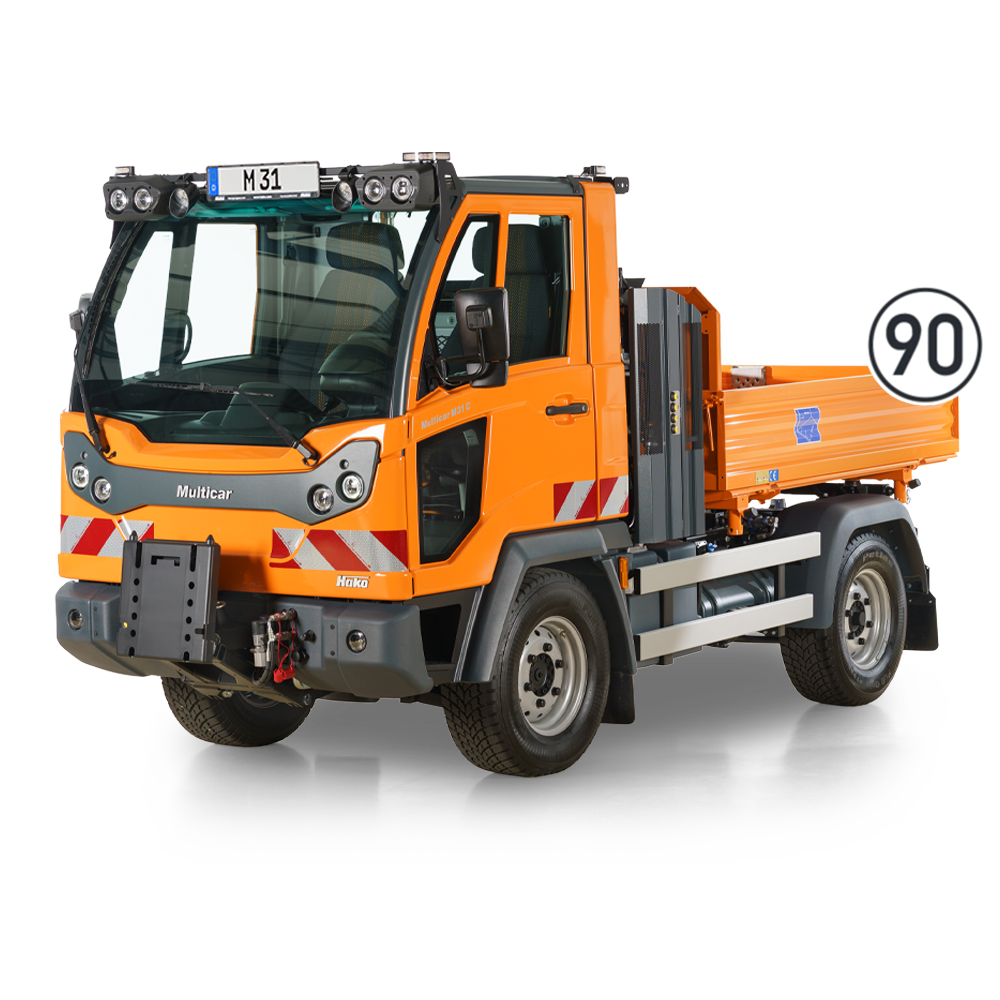

Multicar M31

Load and implement carrier in the 6-t class

Three attachment points for
a wide variety of applications

High hydraulic performance

Also available with
hydostatic drive

Multifunctionality, economic efficiency and dynamics in a compact form: As a versatile implement carrier and powerful transporter, the Multicar M31 masters all tasks in year-round use with ease – and sets new standards in terms of safety and comfort. Redefining sustainability and performance in the 6-t class, the vehicle is a genuine trendsetter. It fully complies with the Euro VI-E standard for lower exhaust emissions without sacrificing performance!

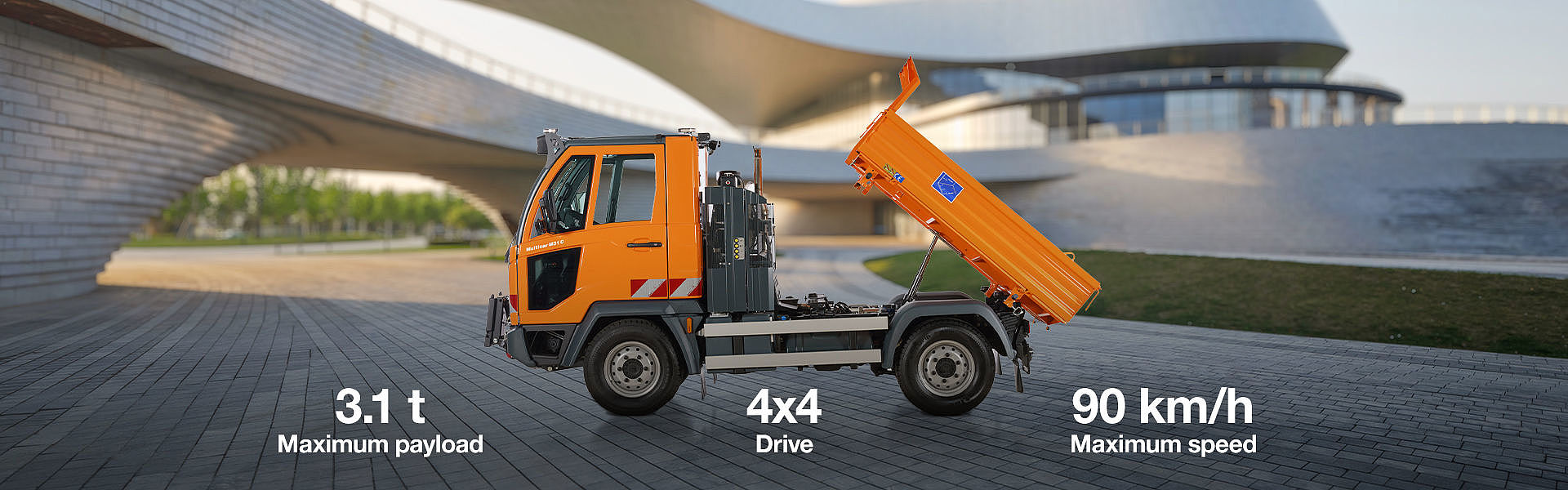

Modular vehicle concept with four basic models
High levels of driving comfort thanks to individually suspended wheels
Extremely comfortable working for the driver
Individual optional equipment for increased performance, comfort and safety
Meets the Euro VI-E standard: emissions are reduced by over 90 %

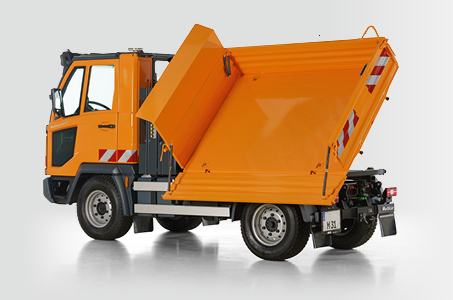

Versatile: As a three-way tipper with variable hydraulic tipping directions, the Multicar M31 is flexible, for example, in construction site applications or for transporting bulk materials. Unloading is possible in any direction – and maneuvering into free spaces is extremely easy thanks to a width of just 1.63 m and a small turning circle, even in confined areas.

Versatile: As a three-way tipper with variable hydraulic tipping directions, the Multicar M31 is flexible, for example, in construction site applications or for transporting bulk materials.

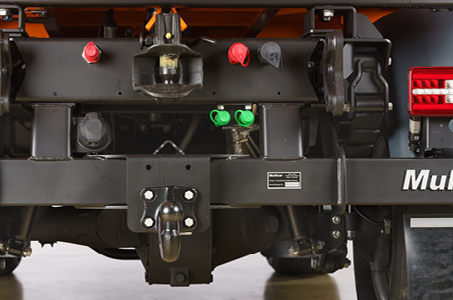

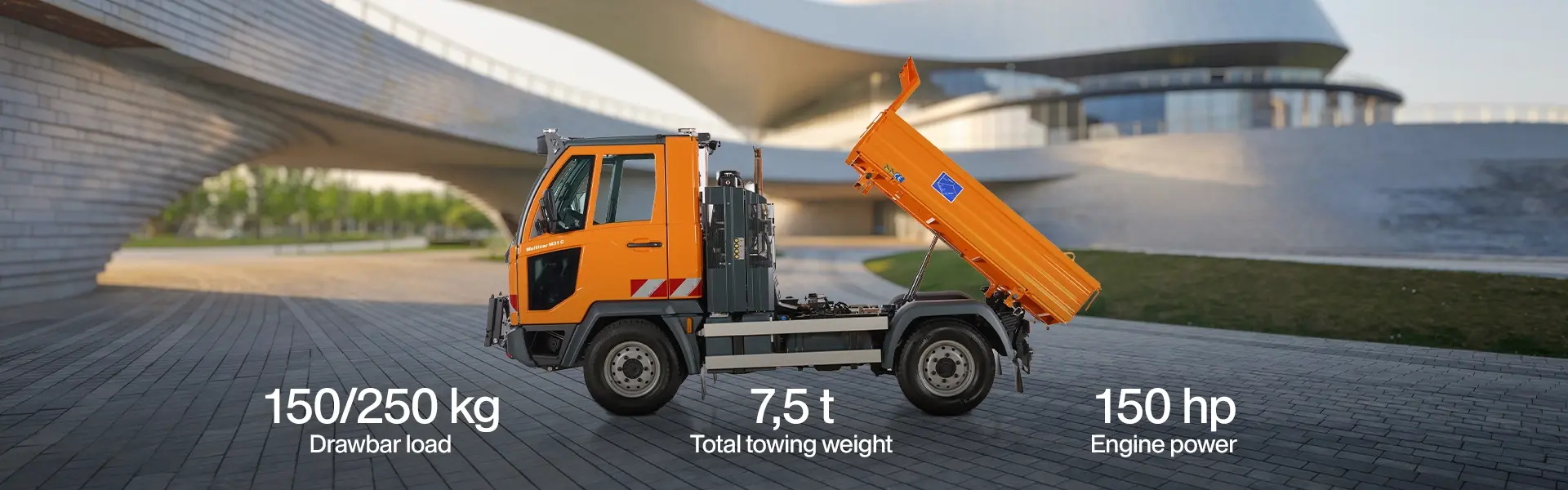

Strong towing: The ball head or pin coupling with a high drawbar load of 150 or 250 kg respectively enables even heavy loads to be transported with stable handling. Just like the total towing weight of up to 7.5 t with a payload of up to 3.1 t and braked trailer load of up to 3.5 t.

Strong towing: The ball head or pin coupling with a high drawbar load of 150 or 250 kg respectively enables even heavy loads to be transported with stable handling.

Powerful: The FPT turbodiesel with an output of 110 kW (150 hp) is fuel-efficient and low in emissions. If required, all-wheel drive and crawling gear can be engaged at the push of a button. In this way, the Multicar M31 efficiently adjusts to the prevailing conditions and increases efficiency in the process.

Powerful: The FPT turbodiesel with an output of 110 kW (150 hp) is fuel-efficient and low in emissions.

Comfortable – and safe!

When it comes to comfort and safety for the user, our standards cannot be high enough. To increase productivity and counteract fatigue, we have ergonomically optimized the design of the cab. With unique, DEKRA-tested safety features and a workplace that can be optimally adapted to the driver, work becomes a pleasure.

Tested and found to be safe: according to ECE-R 29 and even ECE-R 13 (Multicar M31 Hydrostat) for safety in all situations.

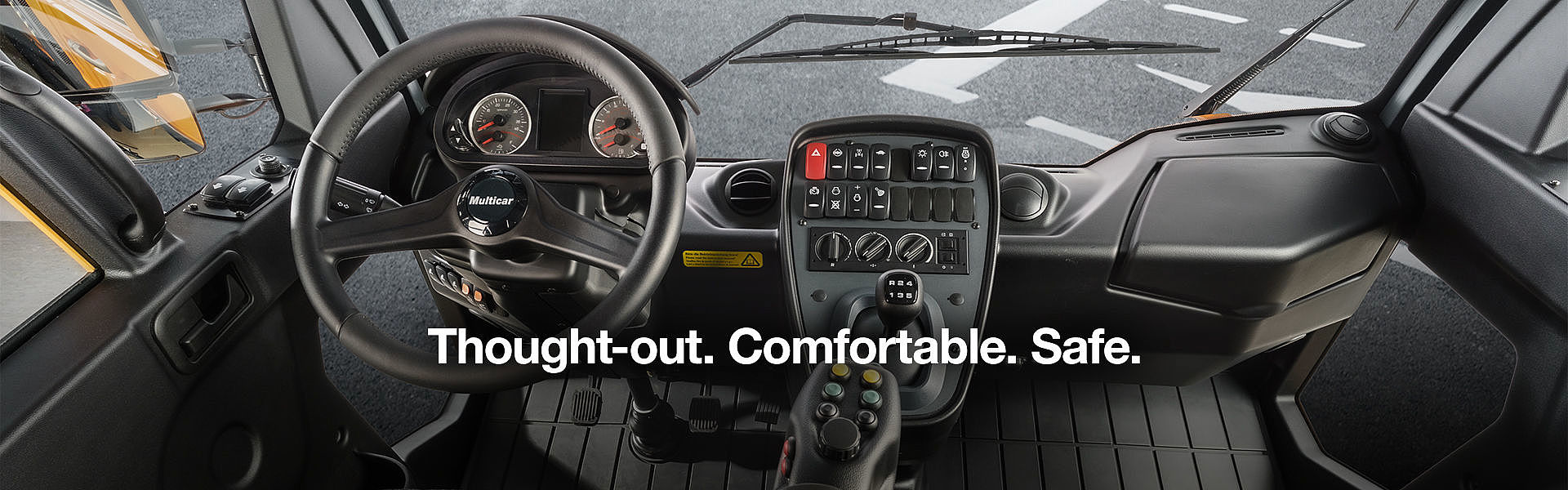

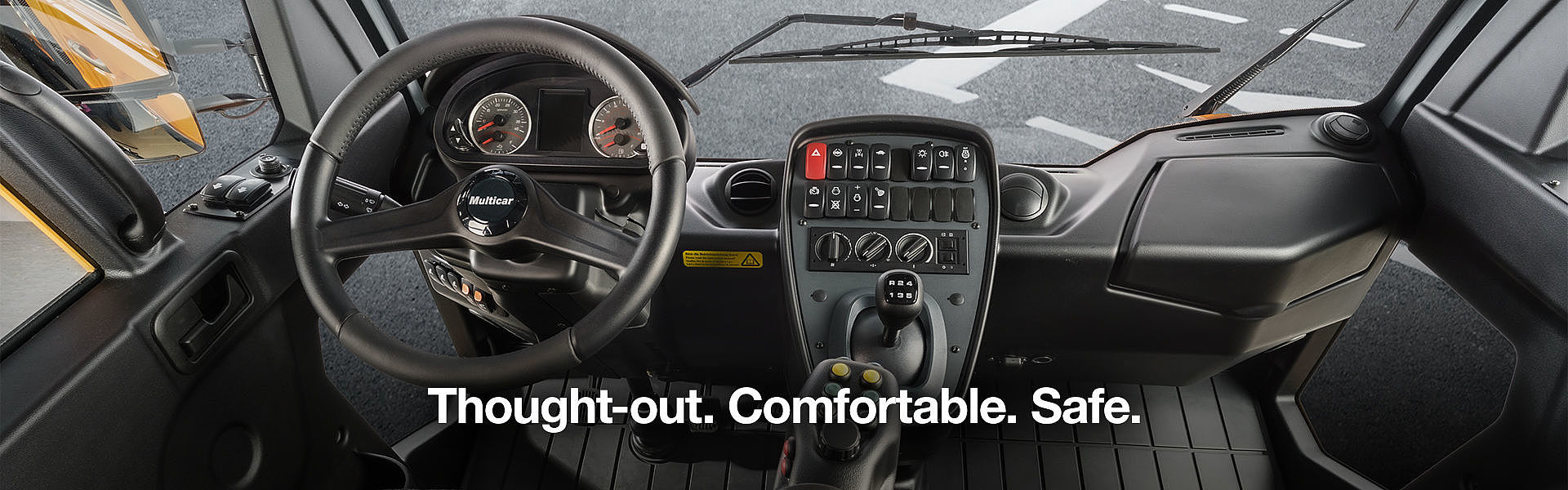

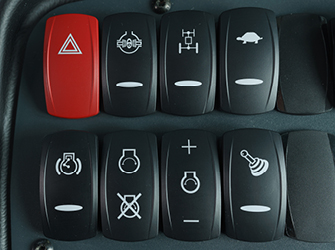

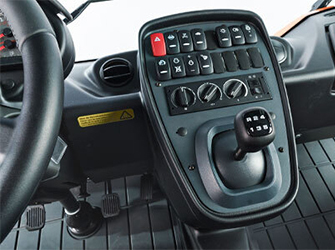

Everything comfortably under control: The easily accessible controls and intuitive operating logic increase user-friendliness and working comfort.

The most important things at a glance: The operating and display elements are equipped with LED technology and are clearly arranged.

Optimally illuminated with LED: thanks to energy-efficient lighting equipment with an optimum beam angle.

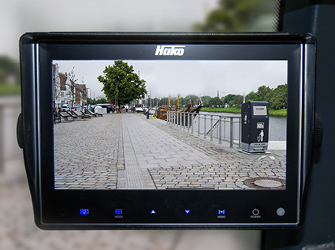

Complete all-round visibility: with optional camera system (available from Q1 2024) and rear-view cameras.

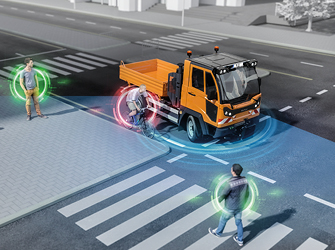

Recognizing dangerous situations: with optional turn-off assistant, the blind spot is also in view.

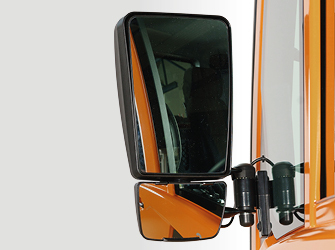

Simply see more: through the large exterior mirrors, optionally equipped with additional wide-angle mirrors.

Overhead console control center: a keypad allows quick and easy adjustment of work options such as work lights, windshield and mirror heating, and the front camera.

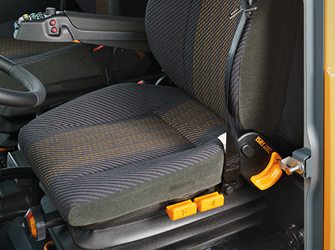

All buckled up? A contact in the seat cushion and seat belt buckle check for occupancy and use. Warning signals are given if the seat belt is not fastened.

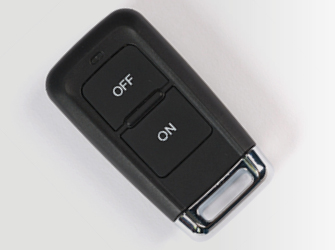

Protected against theft: The immobilizer can only be deactivated with the remote control key.

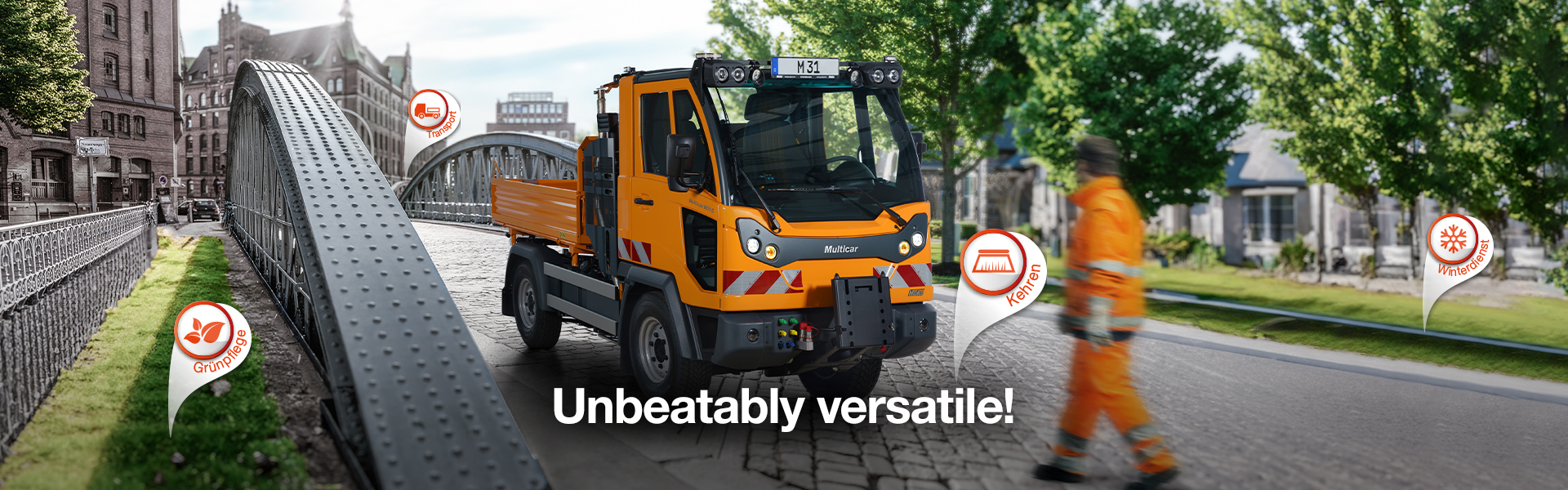

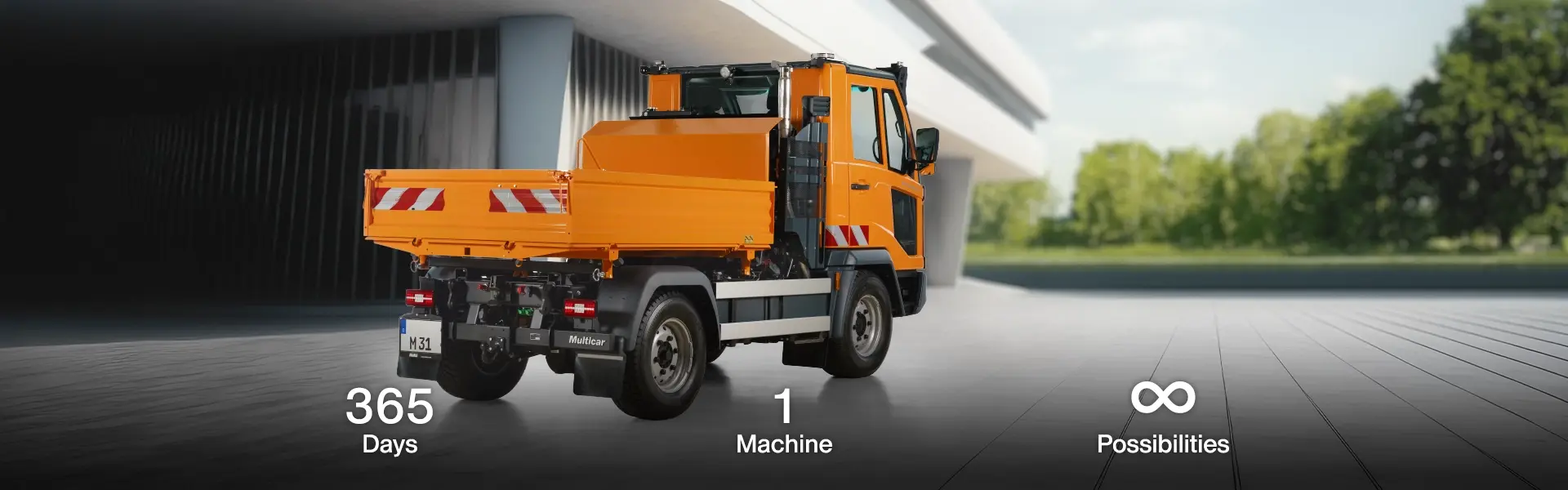

Multifunctional in year-round use!

Whether in the city, in landscaping, in the construction industry or in waste disposal: The multifunctional talent Multicar M31 convinces with a multitude of applications and maximum flexibility. With a wide range of attachments and superstructures, it can be optimally adapted to all tasks and conditions and is particularly user-friendly – both during preparation for use and during execution.

Seasonal application possibilities – e.g.:

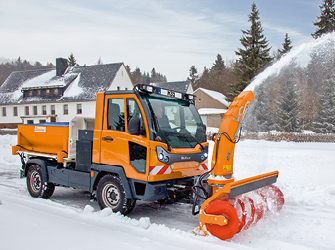

Winter service with snow ploughs or snow brushes

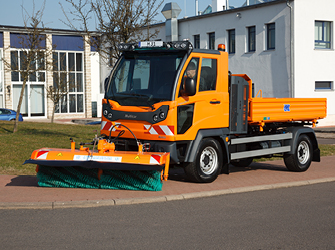

Sweeping with front-mounted and suction sweepers
Cleaning with water pressure or hand-held cleaning/watering equipment

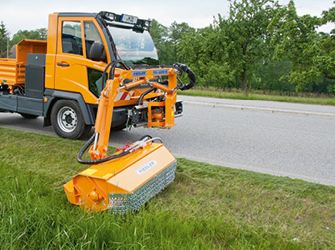

Mowing with cutter bars, rotary mowers, flail mowers, boom mowers and mowing-suction combi devices
Maintaining trees and shrubs, cutting trees from a lifting platform, chaffing, and transportation of the cuttings

Seasonal application possibilities – e.g.:

Winter service with snow ploughs or snow brushes
Sweeping with front-mounted and suction sweepers

Seasonal application possibilities – e.g.:

Winter service with snow ploughs or snow brushes
Sweeping with front-mounted and suction sweepers
Cleaning with water pressure or hand-held cleaning/watering equipment
Mowing with cutter bars, rotary mowers, flail mowers, boom mowers and mowing-suction combi devices
Maintaining trees and shrubs, cutting trees from a lifting platform, chaffing, and transportation of the cuttings

Year-round application possibilities – e.g.:

Transport tasks with a three-way tipper or a skip loader

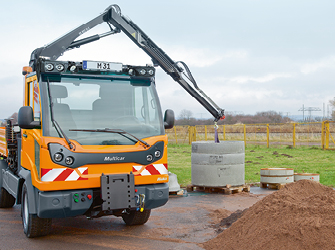

Can also be used in combination with a loading crane or a gripper
Waste management tasks in pedestrian zones, parks, and areas with narrow access roads

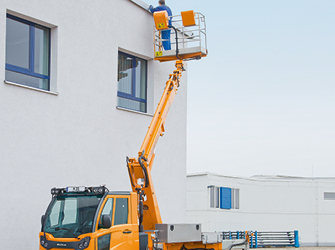

Repair and maintenance work with lifting platforms
Gully cleaning with a special superstructure
Sewer cleaning with special suction devices

Year-round application possibilities – e.g.:

Transport tasks with a three-way tipper or a skip loader
Can also be used in combination with a loading crane or a gripper

Year-round application possibilities – e.g.:

Transport tasks with a three-way tipper or a skip loader
Can also be used in combination with a loading crane or a gripper
Waste management tasks in pedestrian zones, parks, and areas with narrow access roads
Repair and maintenance work with lifting platforms
Gully cleaning with a special superstructure
Sewer cleaning with special suction devices

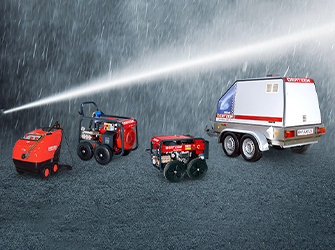

Powerful Team with Waterjet technology:
Oertzen high-pressure cleaners are the perfect complement to the Multicar M31 for use on multiple tasks.

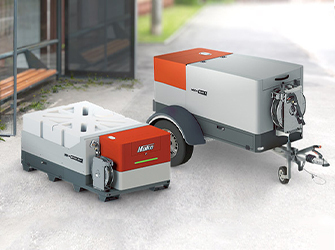

Just as practical: Weco weed control units with the additional functions of cold and hot water high-pressure cleaning and irrigation.

Powerful Team with Waterjet technology:
Oertzen high-pressure cleaners are the perfect complement to the Multicar M31 for use on multiple tasks.

Just as practical: Weco weed control units with the additional functions of cold and hot water high-pressure cleaning and irrigation.

Sustainable transport concepts and low-emission mobility are important starting points for counteracting climate change. With Multicar M31, we are making our contribution!

It's never too early for sustainability

That's why the Multicar M31 with its high-performance exhaust gas purification system meets the Euro VI E standard - making municipal use even more sustainable and fit for the future. We have also incorporated our corporate responsibility into its development: with innovations that set standards in municipal technology. And with the selection of high-quality materials for a long machine life even in tough continuous operation.

To comply with the strict limits, various exhaust gas purification systems such as a diesel oxidation catalyst and SCR-coated diesel particulate filter as well as a second SCR catalyst are integrated. With success:

Exhaust gas aftertreatment is optimally ensured in all operating conditions
Strong reduction of nitrogen oxide and particulate emissions
Municipal use becomes even more sustainable and future-proof

Sustainability through service: The longer a machine is in operation, the better its eco-balance. That's why we provide well thought-out, intelligent services to ensure a long service life in which our solutions operate efficiently and reliably.

Protecting health: To ensure that noise does not become a burden for the driver and the environment, we reduce noise emissions to the lowest possible level during operation.

Fewer emissions at the point of use: We ensure this with the use of exhaust gas purification systems, catalytic converters and diesel particulate filters.

Keeping an eye on the life cycle: when developing our machines, we think from start to finish – from production with environmentally friendly, CO₂-saving processes in modern plants to economic, environmentally friendly use, recycling and disposal.

Four models for every challenge

Four basic types of the Multicar M31 model are available. Depending on your individual requirements and the job on hand, you can select different features and equipment options. This is made possible by the consistently modular vehicle concept we apply when developing our Multicars. You can choose between a short and a long wheel base, 4x2 and 4x4 drives, 2- or 3-seater cabins and many more additional options increasing the vehicle’s economic efficiency, working comfort and safety.

Multicar M31 B – Robust chassis

Multicar M31 T – The special transporter

Multicar M31 C – Professional implement carrier with powerful mobile hydraulics

Multicar M31 Hydrostat – Professional implement carrier with hydrostatic drive

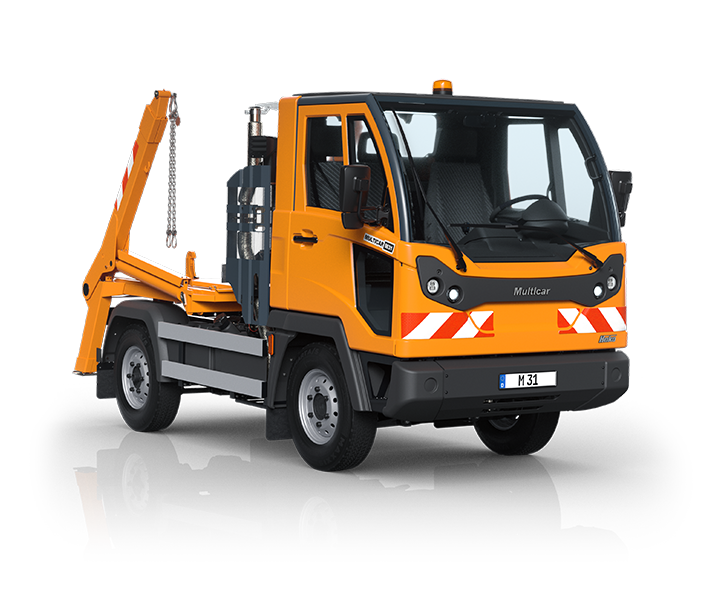

Multicar M31 B – Robust chassis

Stationary 1-circuit hydraulics with a gear pump providing a nominal pressure of up to 250 bar
Particularly suited for stationary operated superstructures, e.g.

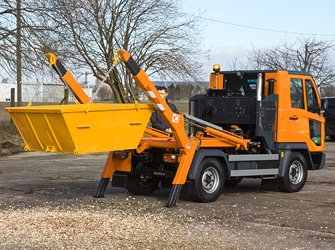

- skip loaders or roll-off tippers
- loading cranes
- lifting platforms
- waste compressors
- gully cleaners
Optionally available with 4x2 or 4x4 drive and short (2,450 mm) or long 2,995 mm) wheelbase
Optional ball system allowing easy changing of attachments

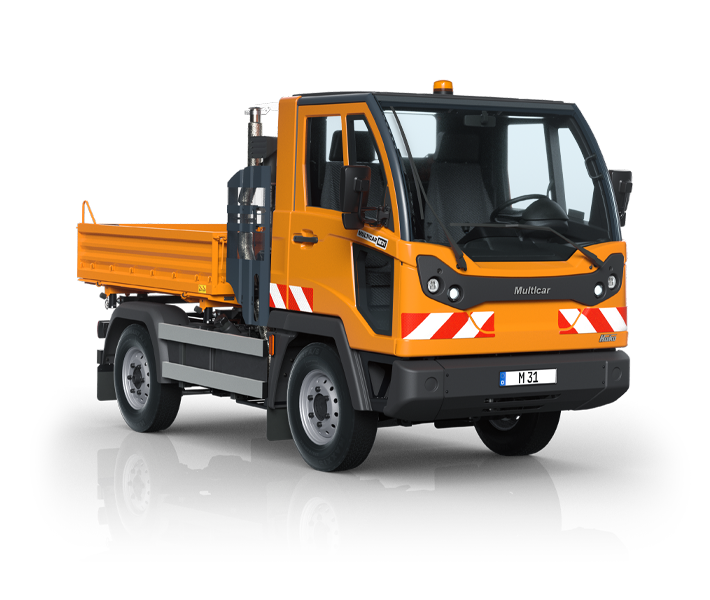

Multicar M31 T – The special transporter

With cost-effective tipping hydraulics for three-way tipping
Tipping body with a tipping angle of approx. 45° in all three directions as well as optional front and side wall elevation

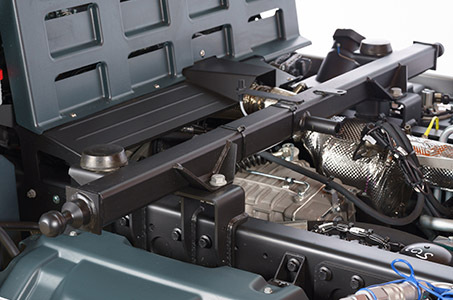

Frame with four balls to accommodate the three-way tipper body
Optionally with 4x2 or 4x4 drive and short (2,450 mm) or long (2,995 mm) wheelbase
Optional preparation for light winter service
Flexible and powerful in use with payloads of up to 2.9 t and towing capacity of up to 3.5 t

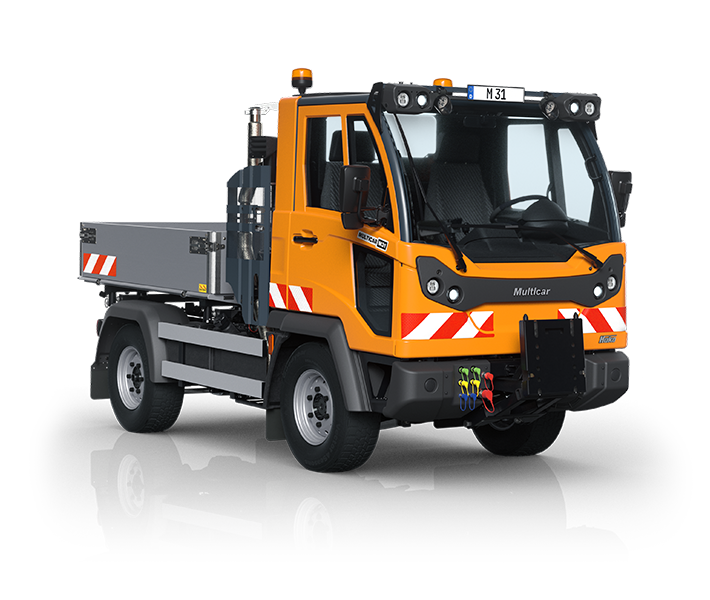

Multicar M31 C – Professional implement carrier with powerful mobile hydraulics

Three different mobile hydraulics versions are available:
- 1 circuit with a gear pump
- 2 circuits with a dual gear pump
- 2 circuits with an axial piston pump (high pressure comfort hydraulics)
For various demanding applications
Infinitely adjustable volumetric flow rate, comfortable operation from the workplace inside the cabin
LS hydraulics providing high drive power at low rpm’s
Equipped with 4x4 drive and available with either a short (2,450 mm) or a long (2,995 mm) wheelbase (option)
Optional ball system providing easy changing of attachments

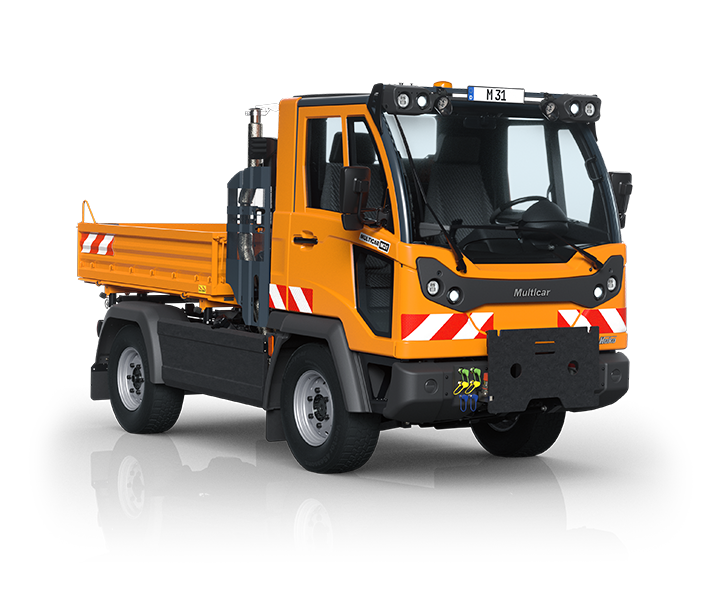

Multicar M31 Hydrostat – Professional implement carrier with hydrostatic drive

Hydrostatic drive, three different options are available:
- 1 circuit with a gear pump,
- 2 circuits with a dual gear pump,
- 2 circuits with an axial piston pump (high pressure comfort hydraulics)
No clutch, no wear and tear
Infinitely variable speed, adjustable via the accelerator pedal or a hand lever
Always the perfect speed range for every application, thanks to two different drive modes and a crawler gear
Perfectly suited for municipal tasks such as snow ploughing, sweeping, mowing and collecting leaves
Particularly safe thanks to the unique Hydrostat ABS. Disc brakes at all four wheels ensure short braking distances. The 4-channel ABS actively intervenes whenever a wheel is about to spin.

Multicar M31 at a glance

	Multicar M31 T	Multicar M31 B	Multicar M31 C	Multicar M31 Hydrostat
Engine and gearbox
Engine	Volume-produced engine, FPT turbo diesel, displacement 2998 cm³
Output	110 kW (150 PS) @ 3500 U/min			108 kW (147 PS) @ 3000 U/min
Max. torque	320 Nm @ 1200 U/min			370 Nm @ 1320 U/min
Exhaust emissions	Exhaust emissions according to EURO VI Standard EC 595/2009/EC
Gear box	5 forward gears and 1 reverse gear; with all-wheel drive incl. crawler gear: 10 forward- and 2 reverse gears			continuously variable hydrostatic drive with two drive modes: transport and working, can be combined with the crawler gear
Driving characteristics
Speed range class N2	0 - 90 km/h			0 - 70 km/h
Chassis	flexible steel frame in a modular design
Wheelbase	2450 mm (short), alternatively 2995 mm (long)
Axles/front suspension	independent suspension with telescopic shock absorbers and additional coil springs
Axles/rear suspension	with telescopic shock absorbers and additional progressive leaf springs
Tyres	225/75 R 16 C (standard), other tyres are optionally available
Cabin	tiltable space-frame cabin, safety cabin compliant with ECE-R 29
Drive and steering
Drive	4 x 2-, driver-engaged 4 x 4 all-wheel drive (option)		driver-engaged 4 x 4 all-wheel drive (standard)
Clutch	hydraulically actuated, asbestos-free
Steering	Power steering (hydraulic steering), height and tilt adjustable
Tank capacity	90 litres, Ad Blue 17 litres
Breaking system	4-wheel disc brakes (ventilated) with 4-channel ABS, compliant with ECE-R-13			additional hydraulic brake slip regulation, compliant with ECE-R 13
Load values
Permissible gross vehicle weight	up to 5.6 t			up to 5.7 t
Permissible axle load, front	2.4 t/2.7 t		2.7 t
Permissible axle load, rear	up to 3.67 t			up to 3.8 t
Payload with 4x2 drive*	up to 2.9 t	up to 3.1 t
Payload with 4x4 drive*	up to 2.8 t	up to 3 t	up to 2.9 t	up to 2.9 t
Permissible trailer load	3.5 t (braked) / 0.75 t (non-braked)
Total towing weight	7.5 t
Hydraulics
Characteristics	Tipper hydraulics: max. 10 l/min max. working pressure 180 bar, optional: preparation light-duty winter service (swivelling/lifting/lowering front attachment – max. 5 l/min)	Stationary hydraulics single-circuit hydraulics up to 55 l/min @ 200 bar up to 40 l/min @ 250 bar (depending on the version)	Mobile hydraulics 3 versions available 1. 1 circuit, gear pump, 1 x 55 l, max. working pressure 200 bar 2. 2 circuits, dual gear pump, 2 x 55 l, max. working pressure 200/250 bar 3. 2 circuits, high-pressure comfort hydraulics, axial piston pump and gear pump, 110 l, max. working pressure 200/300 bar, switchable	Mobile hydraulics 3 versions available 1. 1 circuit, gear pump, 1 x 55 l, max. working pressure 200 bar 2. 2 circuits, dual gear pump, 2 x 55 l, max. working pressure 200/250 bar 3. 2 circuits, high-pressure comfort hydraulics, axial piston pump and gear pump, 110 l + 34 l, max. working pressure 200/300 bar, switchable
Dimensions	4,180 x 1,630 x 2,200 mm
